09642237802 - HARTING

Description: D-Sub Ferrite Filter 15pin male angled pcb mount, board locks, 4-40UNC clinch nut (will be phased out 9/30/22)

Download 09642237802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

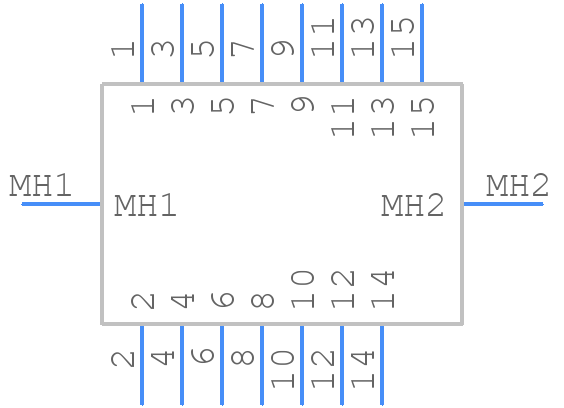

09642237802 - HARTING - PCB symbol
click to zoom
PCB Footprints

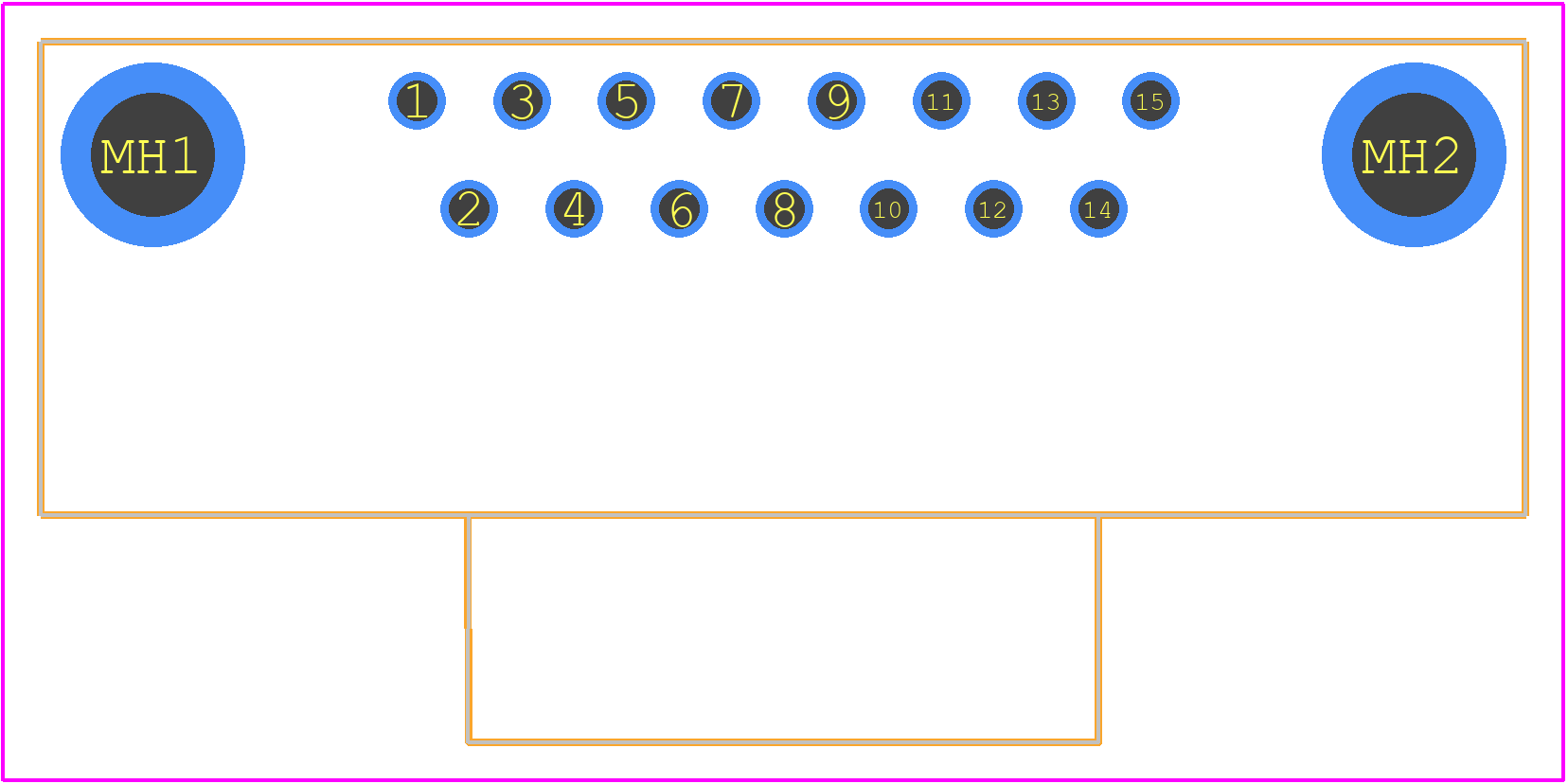

09642237802 - HARTING PCB footprint - Other - Other - 09642237802-1
click to zoom
3D Models
09642237802 - HARTING - 3D model - Other - 09642237802-1
click to zoom

09642237802 Details

  • Manufacturer Part Number:

    09642237802

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

09642237802 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09642237802 connector is designed to withstand vibrations up to 10g (according to IEC 60068-2-6) and is suitable for use in harsh industrial environments. However, it's crucial to ensure proper mounting and screwing to prevent damage.
  • Yes, the 09642237802 connector is designed for automated assembly and is compatible with reflow soldering processes up to 260°C (500°F) for 30 seconds. Consult the HARTING application notes for specific guidance on soldering profiles and assembly recommendations.
  • The 09642237802 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 09642237802 connector has a IP67 rating, which means it is protected against dust and water ingress up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and mounting to maintain the IP67 rating.
