09643137802 - HARTING

Description: D-Sub Ferrite Filter 25pin female angled pcb mount, board locks, 4-40UNC clinch nut (will be phased out 9/30/22)

Download 09643137802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

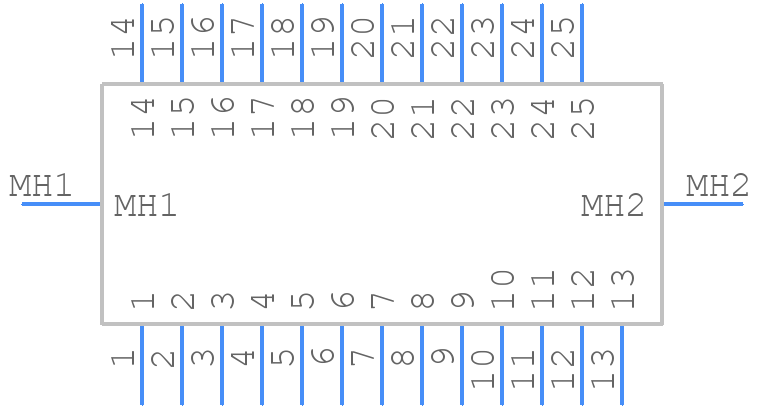

09643137802 - HARTING - PCB symbol
click to zoom
PCB Footprints

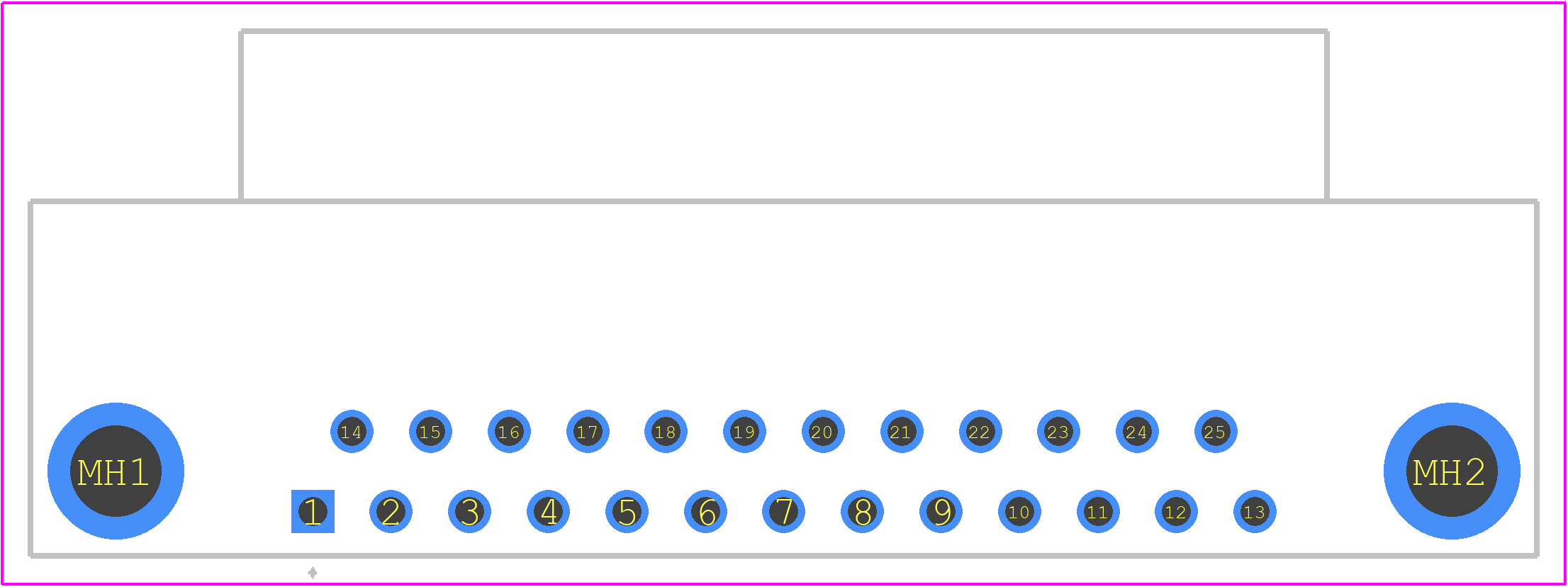

09643137802 - HARTING PCB footprint - Other - Other - 09643137802-4
click to zoom
3D Models
09643137802 - HARTING - 3D model - Other - 09643137802-4
click to zoom

09643137802 Details

  • Manufacturer Part Number:

    09643137802

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

09643137802 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09643137802 connector is designed to withstand vibrations up to 10g (according to IEC 60068-2-6) and is suitable for use in applications with moderate to high vibration levels.
  • Yes, the connector is designed for automated assembly and is compatible with reflow soldering processes. However, it's essential to follow HARTING's recommended soldering profiles and guidelines to ensure reliable connections.
  • The 09643137802 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure that the connector is properly sealed and mated to prevent moisture ingress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09643137802 Overview

Use the download button to access the 09643137802 schematic symbol, PCB footprint, and 3D model.
