09643147212 - HARTING

Description: D-Sub C-Filter 25pin female, angled pcb mount, w/ board locks, 4-40UNC Clinch Nut, 47pf

Download 09643147212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

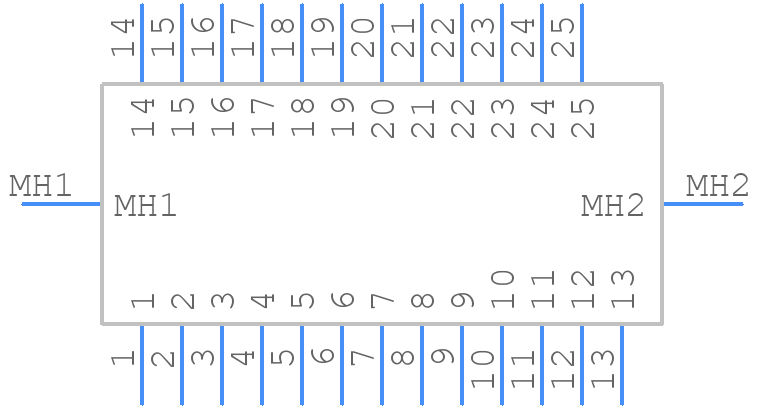

Symbol
09643147212 - HARTING - PCB symbol
click to zoom

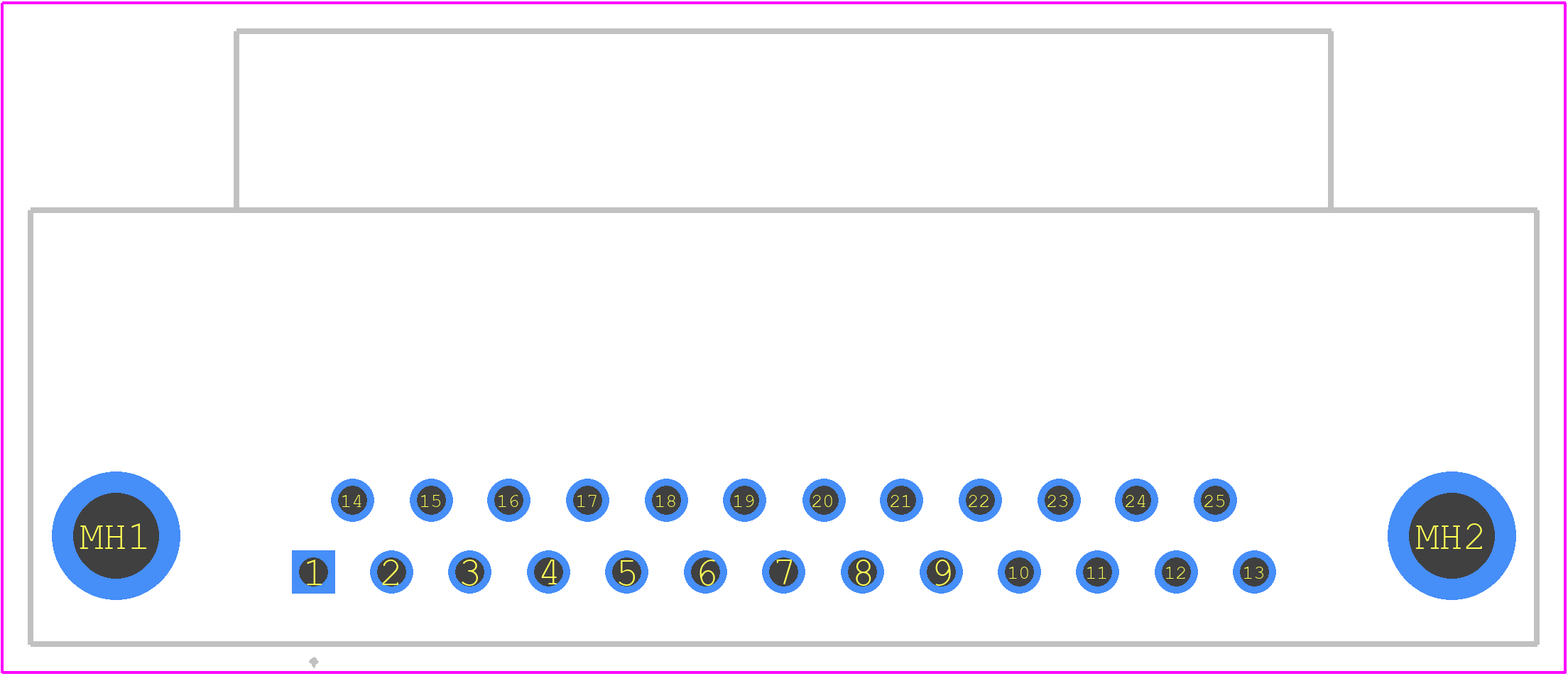

PCB Footprints
09643147212 - HARTING PCB footprint - Other - Other - 09643147212-1
click to zoom
3D Models
09643147212 - HARTING - 3D model - Other - 09643147212-1
click to zoom

09643147212 Details

  • Manufacturer Part Number:

    09643147212

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED PCT-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

09643147212 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 09643147212 connector is -40°C to 125°C.
  • Yes, the 09643147212 connector is designed to withstand high-vibration environments, making it suitable for industrial and transportation applications.
  • The 09643147212 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 09643147212 connector is designed to withstand exposure to various chemicals, including fuels, oils, and cleaning agents. However, it's recommended to consult the HARTING documentation for detailed information on chemical resistance.
  • The mating cycle life of the 09643147212 connector is up to 500 mating cycles, depending on the application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09643147212 Overview

Use the download button to access the 09643147212 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09643, or try a keyword search, such as D Type Connectors
