Part Image

09643147232 - HARTING

Description: D-Sub C-Filter 25pin female, angled pcb mount, w/ board locks, 4-40UNC Clinch Nut, 1000pf

Download 09643147232 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

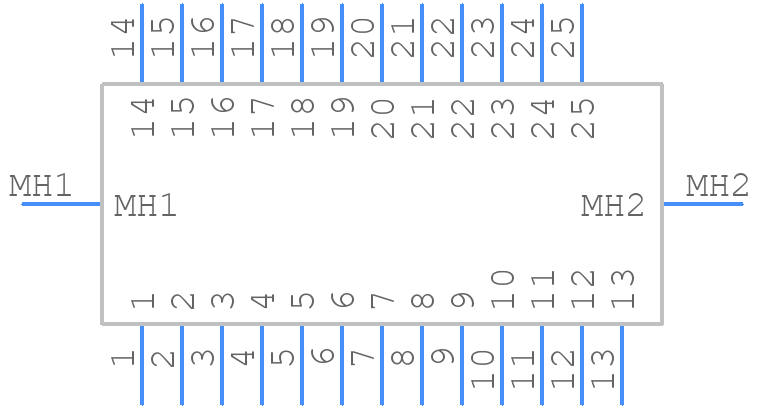

Symbol
09643147232 - HARTING - PCB symbol
click to zoom

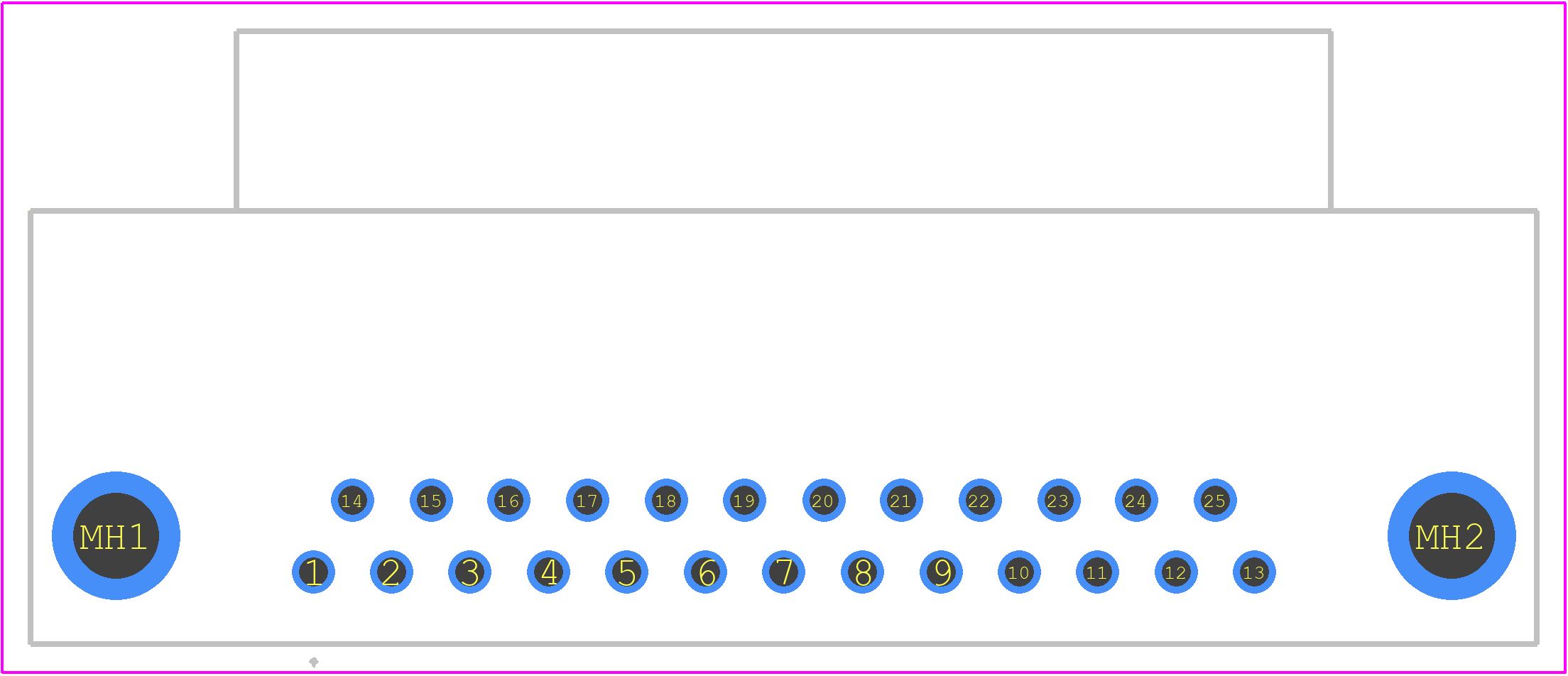

PCB Footprints
09643147232 - HARTING PCB footprint - Other - Other - 09643147232-2
click to zoom
3D Models
09643147232 - HARTING - 3D model - Other - 09643147232-2
click to zoom

09643147232 Details

  • Manufacturer Part Number:

    09643147232

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED PCT-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

09643147232 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09643147232 connector is -40°C to 125°C, as per the HARTING Technology Group's specifications.
  • Yes, the 09643147232 connector is designed to withstand high-vibration environments, making it suitable for applications in industries such as transportation, aerospace, and industrial automation.
  • The 09643147232 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in demanding applications.
  • Yes, the 09643147232 connector is designed to be compatible with other HARTING products, including their range of connectors, cables, and accessories, allowing for easy integration into existing systems.
  • The 09643147232 connector has an IP67 rating, providing protection against dust and water ingress, making it suitable for use in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09643147232 Overview

Use the download button to access the 09643147232 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09643, or try a keyword search, such as D Type Connectors
