The recommended torque value for mating and unmating the 096510-0111 connector is typically between 0.5 to 1.5 Nm (7 to 21 in-lbs), but it's recommended to consult the specific application requirements and ITT Interconnect Solutions' guidelines for precise torque values.
Yes, the 096510-0111 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10 G (98 m/s²) according to ITT Interconnect Solutions' specifications. However, it's essential to consult the specific application requirements and perform thorough testing to ensure the connector meets the desired performance criteria.
The 096510-0111 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand exposure to various chemicals, including fuels, oils, and cleaning solvents. However, it's crucial to consult the specific application requirements and ITT Interconnect Solutions' guidelines for precise environmental specifications and any necessary precautions.
The recommended cable type and size for use with the 096510-0111 connector depends on the specific application requirements. However, ITT Interconnect Solutions typically recommends using cables with a diameter range of 1.5 mm to 3.5 mm (0.06 in to 0.14 in) and a wire gauge of 20 AWG to 24 AWG. It's essential to consult the specific application requirements and ITT Interconnect Solutions' guidelines for precise cable specifications.
Yes, ITT Interconnect Solutions provides specific assembly and installation guidelines for the 096510-0111 connector, including recommended tooling, cable preparation, and connector orientation. It's crucial to consult the specific application requirements and ITT Interconnect Solutions' guidelines to ensure proper assembly and installation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
096510-0111 Overview

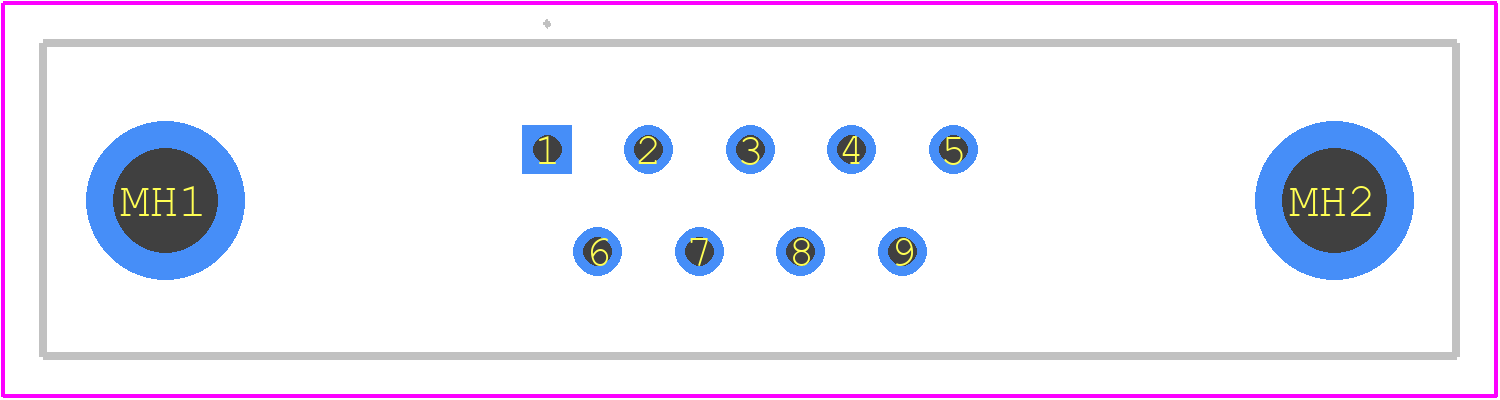

Use the download button to access the 096510-0111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09651,
or try a keyword search, such as D Type Connectors
