09651217702 - HARTING

Description: D-Sub 9pin male straight, stamped, w/o board locks, 4-40UNC, PL3

Download 09651217702 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09651217702 - HARTING - PCB symbol
click to zoom

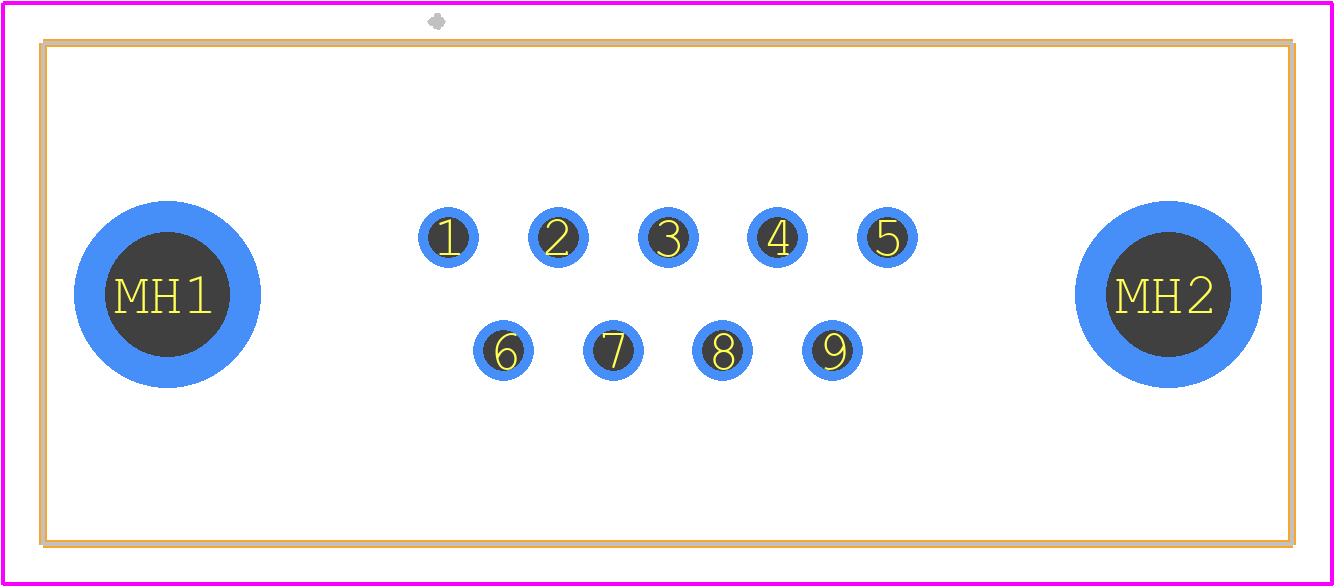

PCB Footprints
09651217702 - HARTING PCB footprint - Other - Other - 09651217702-1
click to zoom
3D Models
09651217702 - HARTING - 3D model - Other - 09651217702-1
click to zoom

09651217702 Details

  • Manufacturer Part Number:

    09651217702

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09651217702 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09651217702 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in applications with moderate to high vibration levels.
  • Yes, the connector is designed for automated assembly and is compatible with reflow soldering processes. However, it's essential to follow HARTING's recommended soldering profiles and guidelines to ensure reliable connections.
  • The 09651217702 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure that the connector is properly sealed and mated to prevent moisture ingress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09651217702 Overview

Use the download button to access the 09651217702 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09651, or try a keyword search, such as D Type Connectors
