09651236803 - HARTING

Description: D-Sub 9pin male angled 2.84mm pitch, stamped, w/o board locks, 4-40UNC screw lock, PL2

Download 09651236803 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09651236803 - HARTING - PCB symbol
click to zoom
PCB Footprints

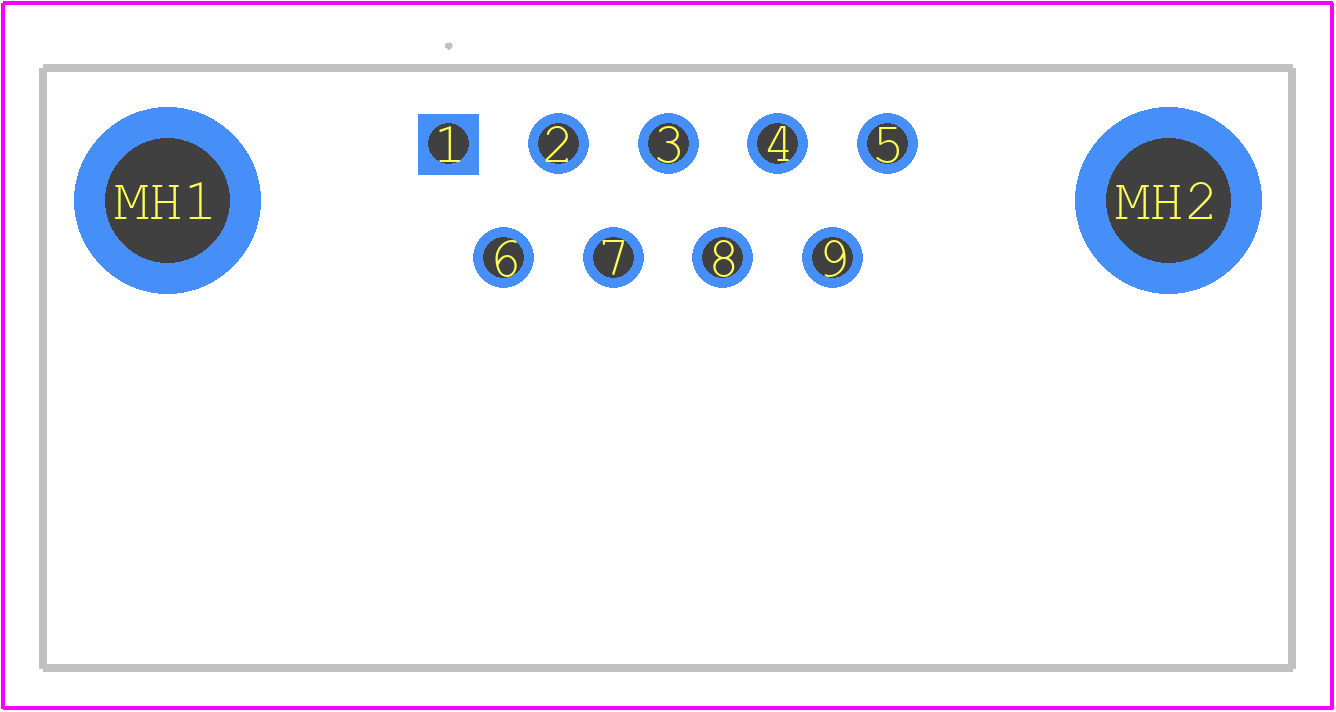

09651236803 - HARTING PCB footprint - Other - Other - 09651236803-2
click to zoom
3D Models
09651236803 - HARTING - 3D model - Other - 09651236803-2
click to zoom

09651236803 Details

  • Manufacturer Part Number:

    09651236803

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652, IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09651236803 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 09651236803 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and harsh environments.
  • Yes, the 09651236803 connector is designed to withstand vibration and shock according to IEC 61373 Category 2, making it suitable for use in applications where mechanical stress is a concern.
  • The 09651236803 connector has an IP67 rating, which means it is protected against dust and water ingress, including temporary immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper installation and sealing procedures to ensure the connector's integrity in wet environments.
  • The 09651236803 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating occur.
  • The 09651236803 connector is part of the HARTING Han-Modular series, which is designed for modular and flexible connections. It is compatible with other Han-Modular products and can be used with third-party connectors that meet the same industry standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09651236803 Overview

Use the download button to access the 09651236803 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09651, or try a keyword search, such as D Type Connectors
