09651626811 - HARTING

Description: D-Sub 9pin male angled 2.54mm pitch, stamped, with board locks, M3, PL2

Download 09651626811 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09651626811 - HARTING - PCB symbol
click to zoom
PCB Footprints

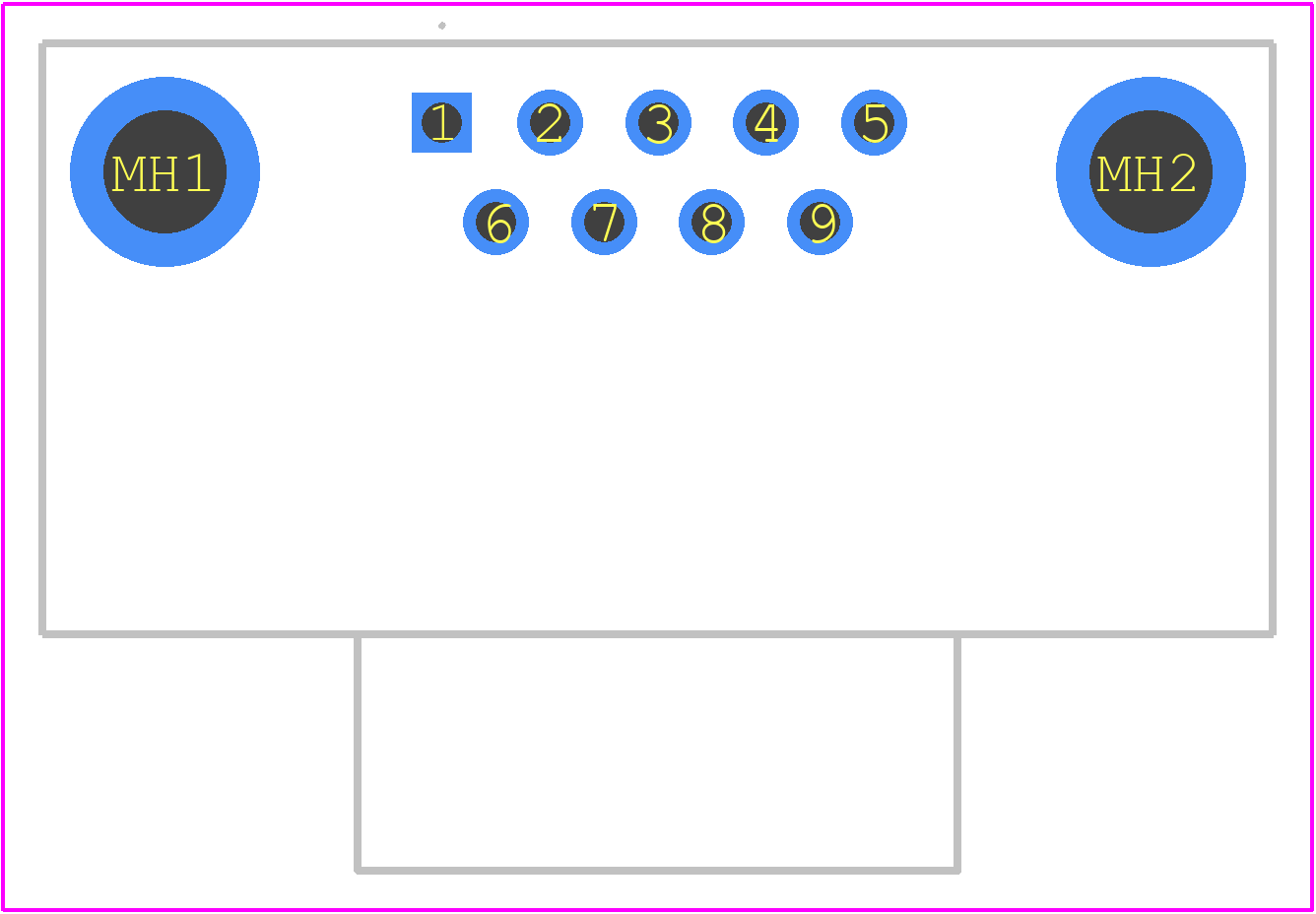

09651626811 - HARTING PCB footprint - Other - Other - 09651626811-1
click to zoom
3D Models
09651626811 - HARTING - 3D model - Other - 09651626811-1
click to zoom

09651626811 Details

  • Manufacturer Part Number:

    09651626811

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09651626811 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for specific guidance.
  • Yes, the 09651626811 connector is designed to withstand vibrations up to 10g (according to IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • Yes, the 09651626811 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The 09651626811 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for use in a wide range of applications, including those in extreme environments.
  • The 09651626811 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in humid or wet environments, such as in outdoor or industrial applications.
