09651626813 - HARTING

Description: D-Sub 9pin male angled 2.54mm pitch, stamped, with board locks, 4-40UNC screw lock, PL2

Download 09651626813 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09651626813 - HARTING - PCB symbol
click to zoom

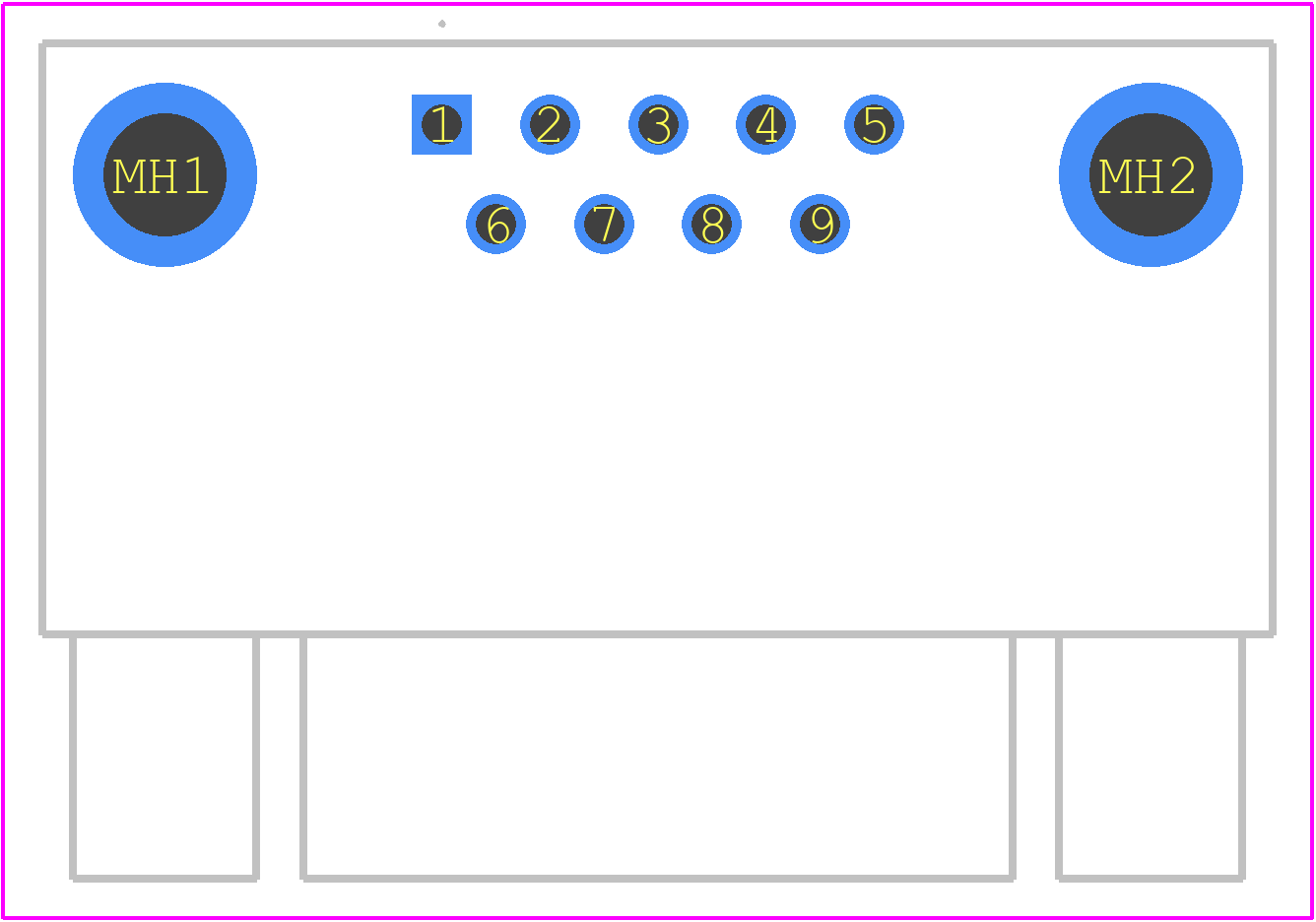

PCB Footprints
09651626813 - HARTING PCB footprint - Other - Other - 09651626813-1
click to zoom
3D Models
09651626813 - HARTING - 3D model - Other - 09651626813-1
click to zoom

09651626813 Details

  • Manufacturer Part Number:

    09651626813

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09651626813 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09651626813 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09651626813 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09651626813 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
  • Yes, the 09651626813 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The maximum current rating of the 09651626813 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09651626813 Overview

Use the download button to access the 09651626813 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09651, or try a keyword search, such as D Type Connectors
