09651637812 - HARTING

Description: D-Sub 9pin male angled 2.84mm pitch, stamped, with board locks, 4-40UNC, PL3

Download 09651637812 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09651637812 - HARTING - PCB symbol
click to zoom
PCB Footprints

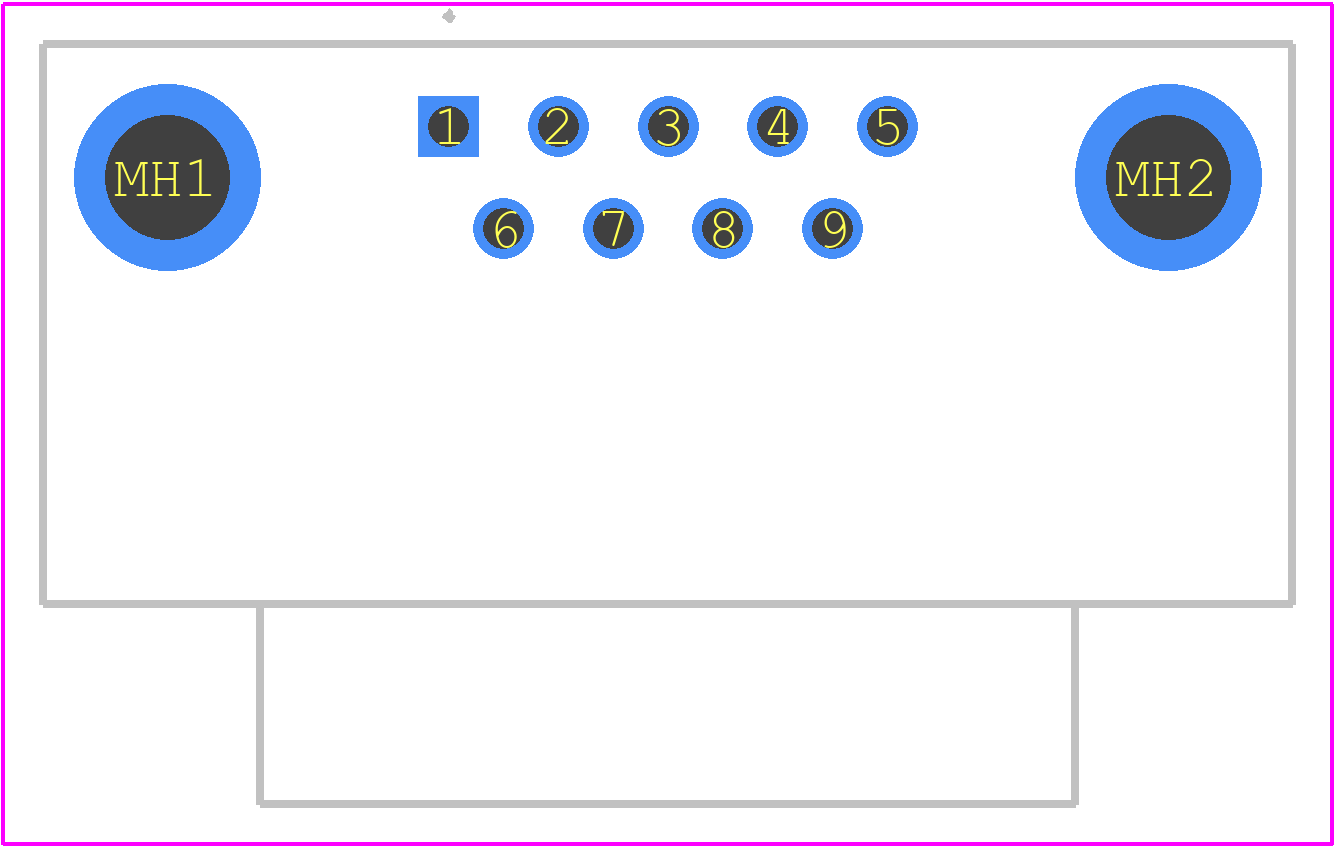

09651637812 - HARTING PCB footprint - Other - Other - 09651637812
click to zoom
3D Models
09651637812 - HARTING - 3D model - Other - 09651637812
click to zoom

09651637812 Details

  • Manufacturer Part Number:

    09651637812

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09651637812 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09651637812 connector is -40°C to 125°C.
  • Yes, the 09651637812 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The mating cycle life of the 09651637812 connector is up to 500 mating cycles, ensuring reliable connections over an extended period.
  • Yes, the 09651637812 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, ensuring environmental sustainability.
  • The 09651637812 connector has an IP67 rating, providing protection against dust ingress and water immersion up to 1 meter for 30 minutes.
