09651696712 - HARTING

Description: D-Sub THR/SMC 9pin male straight, stamped, with board locks, 4-40UNC, PL2

Download 09651696712 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09651696712 - HARTING - PCB symbol
click to zoom
PCB Footprints

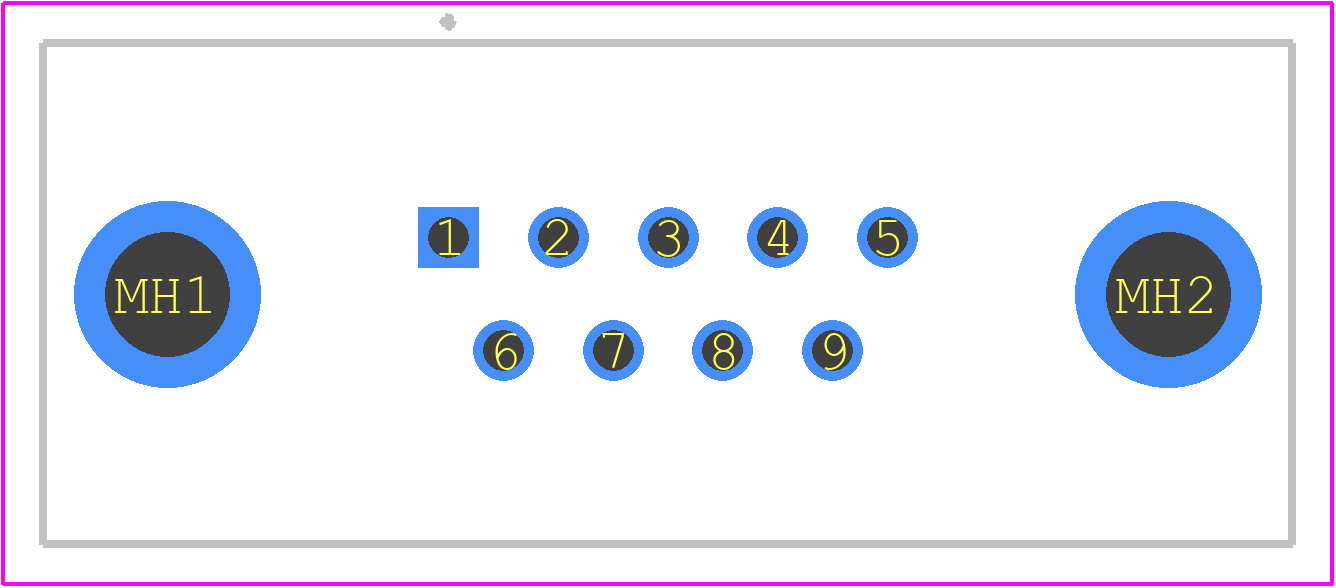

09651696712 - HARTING PCB footprint - Other - Other - 09651696712
click to zoom
3D Models
09651696712 - HARTING - 3D model - Other - 09651696712
click to zoom

09651696712 Details

  • Manufacturer Part Number:

    09651696712

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09651696712 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09651696712 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09651696712 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09651696712 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09651696712 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09651696712 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
