096523-0338 - ITT CANNON

Description: 51 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Download 096523-0338 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
096523-0338 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

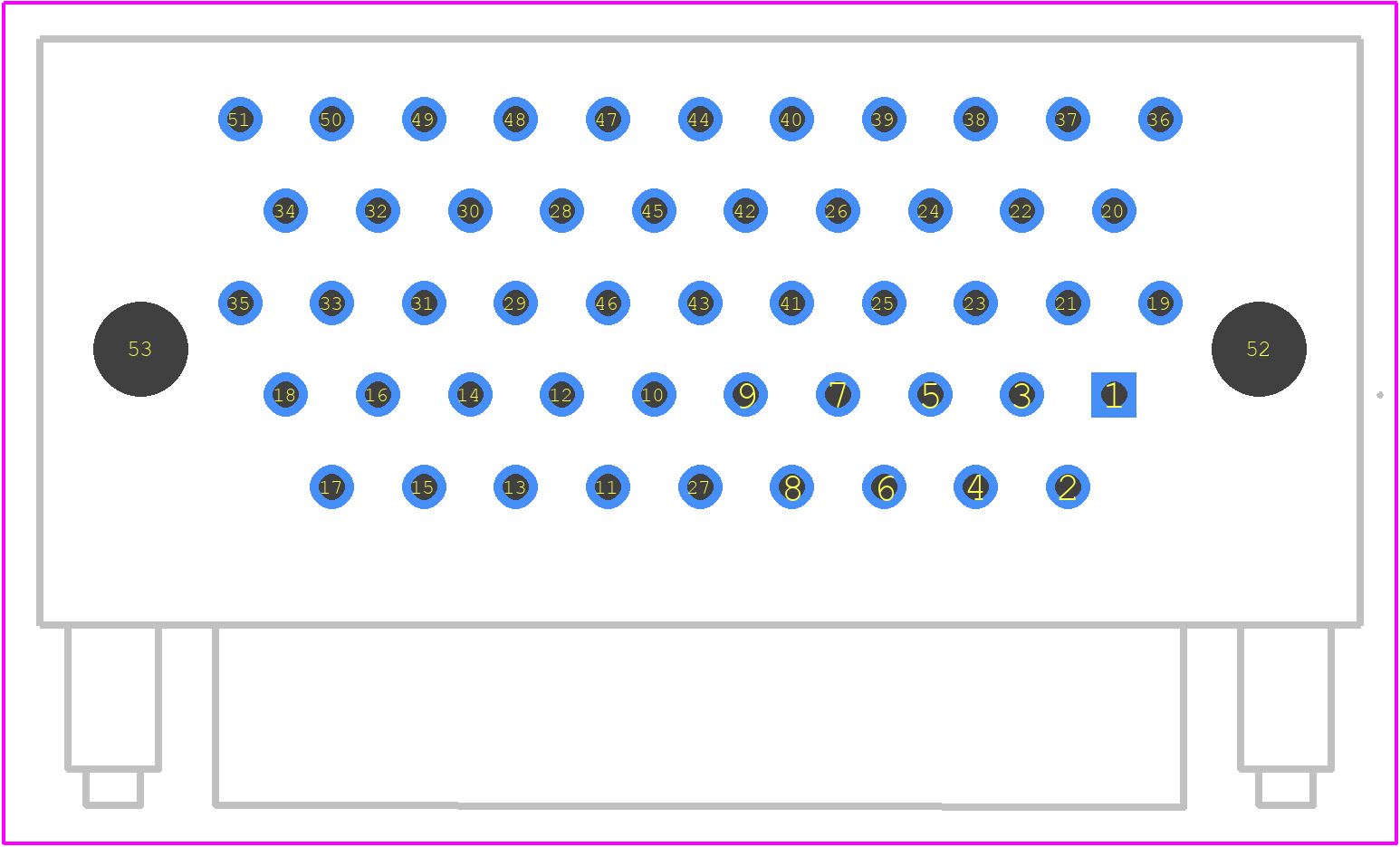

096523-0338 - ITT CANNON PCB footprint - Other - Other - 096523-0338-3
click to zoom

096523-0338 Details

  • Manufacturer Part Number:

    096523-0338

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • Connector Type:

    D MICROMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Shell Finish:

    YELLOW CHROMATE/CADMIUM

  • Shell Material:

    ALUMINUM ALLOY

  • Terminal Length:

    0.109 inch

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

096523-0338 Overview

Use the download button to access the 096523-0338 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 09652, or try a keyword search, such as D Type Connectors
