09652627812 - HARTING

Description: D-Sub 15pin male angled 2.54mm pitch, stamped, with board locks, 4-40UNC, PL3

Download 09652627812 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

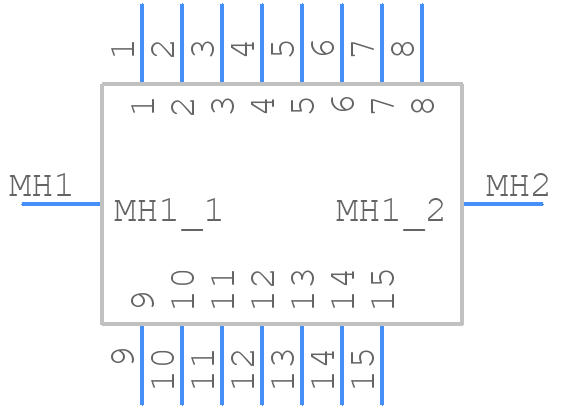

Symbol
09652627812 - HARTING - PCB symbol
click to zoom

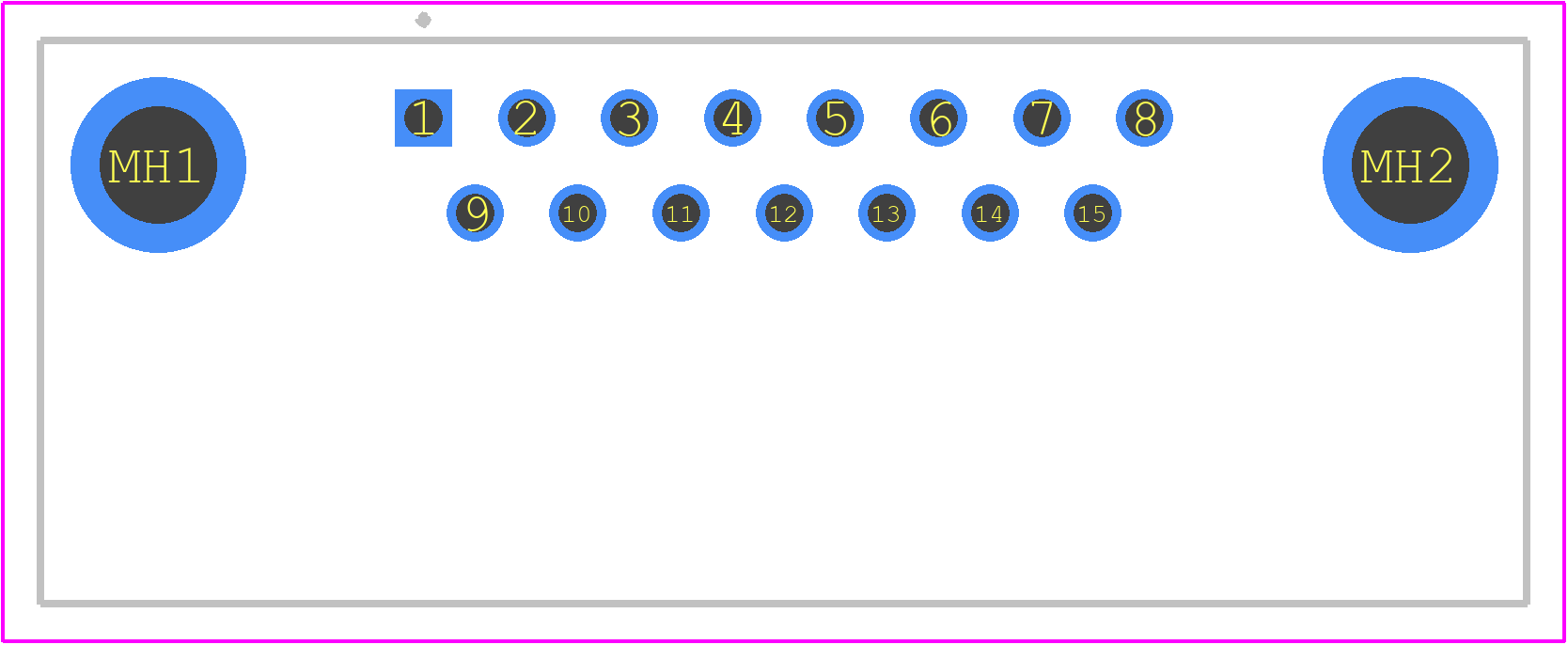

PCB Footprints
09652627812 - HARTING PCB footprint - Other - Other - 09652627810
click to zoom
3D Models
09652627812 - HARTING - 3D model - Other - 09652627810
click to zoom

09652627812 Details

  • Manufacturer Part Number:

    09652627812

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.18

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09652627812 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 09652627812 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and harsh environments.
  • Yes, the 09652627812 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • The 09652627812 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 09652627812 connector is designed to meet the requirements of the ATEX and IECEx directives, making it suitable for use in explosive atmospheres.
  • The 09652627812 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09652627812 Overview

Use the download button to access the 09652627812 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09652, or try a keyword search, such as D Type Connectors
