09653226802 - HARTING

Description: D-Sub 25pin male angled 2.54mm pitch, stamped, w/o board locks, 4-40UNC, PL2

Download 09653226802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09653226802 - HARTING - PCB symbol
click to zoom

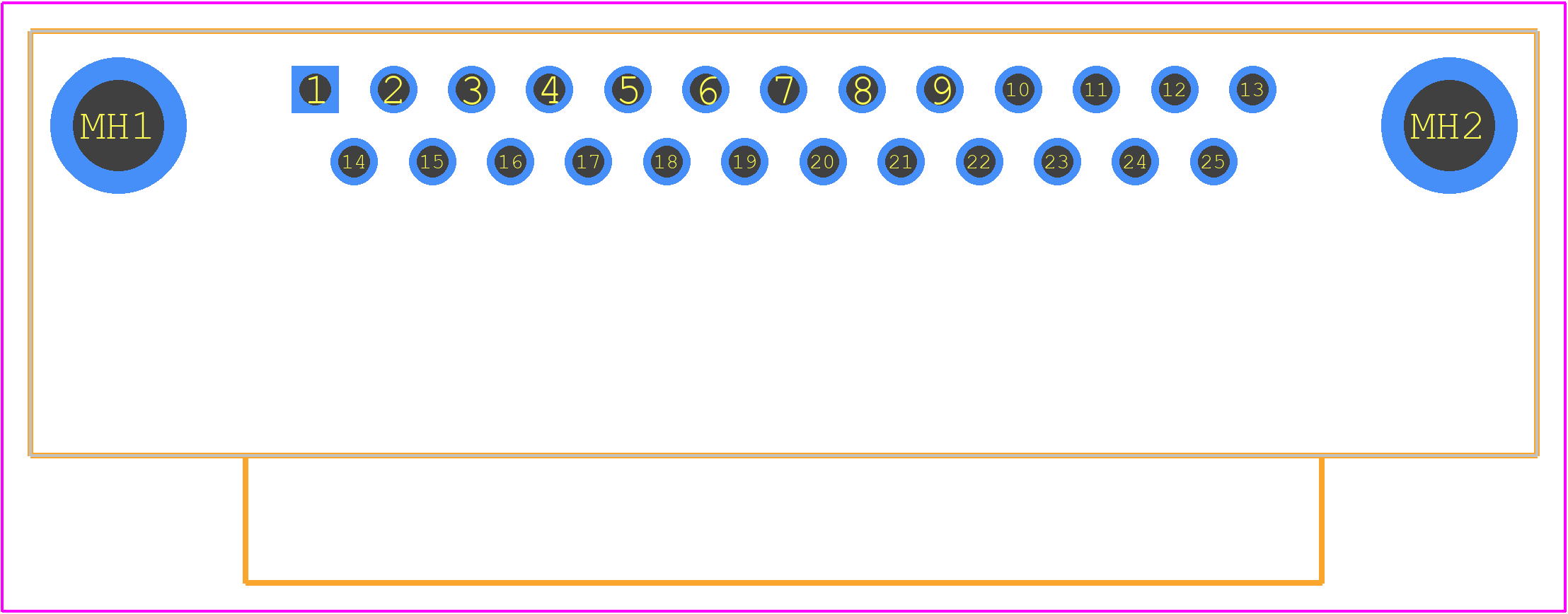

PCB Footprints
09653226802 - HARTING PCB footprint - Other - Other - 09653226802-2
click to zoom
3D Models
09653226802 - HARTING - 3D model - Other - 09653226802-2
click to zoom

09653226802 Details

  • Manufacturer Part Number:

    09653226802

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652, IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

09653226802 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 09653226802 connector is -40°C to 125°C, making it suitable for a wide range of industrial and harsh environment applications.
  • Yes, the 09653226802 connector is designed to withstand high-vibration environments, making it ideal for use in industrial, transportation, and aerospace applications.
  • The 09653226802 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 09653226802 connector is designed to meet the requirements of the ATEX and IECEx standards for use in explosive atmospheres, making it suitable for use in hazardous environments.
  • The 09653226802 connector has a mating cycle life of 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating is required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09653226802 Overview

Use the download button to access the 09653226802 schematic symbol, PCB footprint, and 3D model.
