09653696711 - HARTING

Description: D-Sub THR/SMC 25pin male straight, stamped, with board locks, M3, PL2

Download 09653696711 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

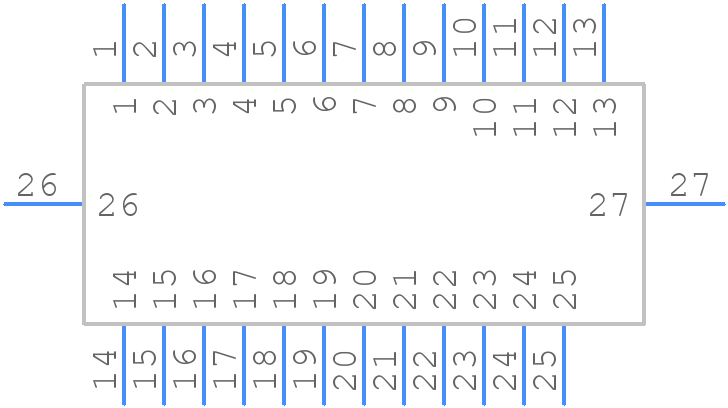

09653696711 - HARTING - PCB symbol
click to zoom
PCB Footprints

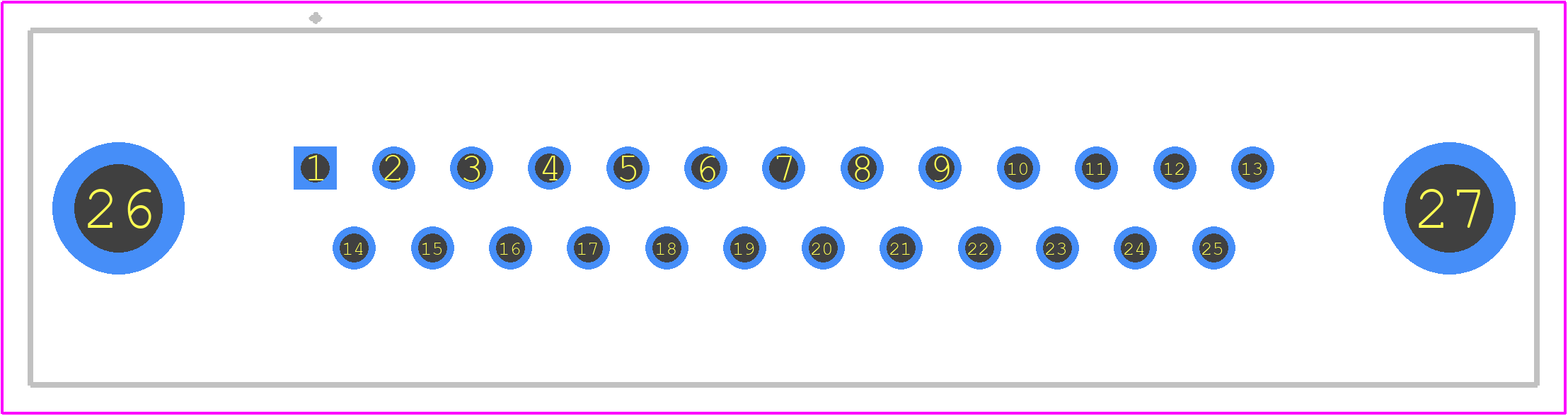

09653696711 - HARTING PCB footprint - Other - Other - D-Sub Male Straight 2.76 x 2.84 25
click to zoom
3D Models
09653696711 - HARTING - 3D model - Other - D-Sub Male Straight 2.76 x 2.84 25
click to zoom

09653696711 Details

  • Manufacturer Part Number:

    09653696711

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

09653696711 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09653696711 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09653696711 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09653696711 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09653696711 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09653696711 connector is designed to be compatible with other HARTING connectors, allowing for easy integration into existing systems and designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09653696711 Overview

Use the download button to access the 09653696711 schematic symbol, PCB footprint, and 3D model.
