09654226801 - HARTING

Description: D-Sub 37pin male angled 2.54mm pitch, stamped, w/o board locks, M3, PL2

Download 09654226801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09654226801 - HARTING - PCB symbol
click to zoom
PCB Footprints

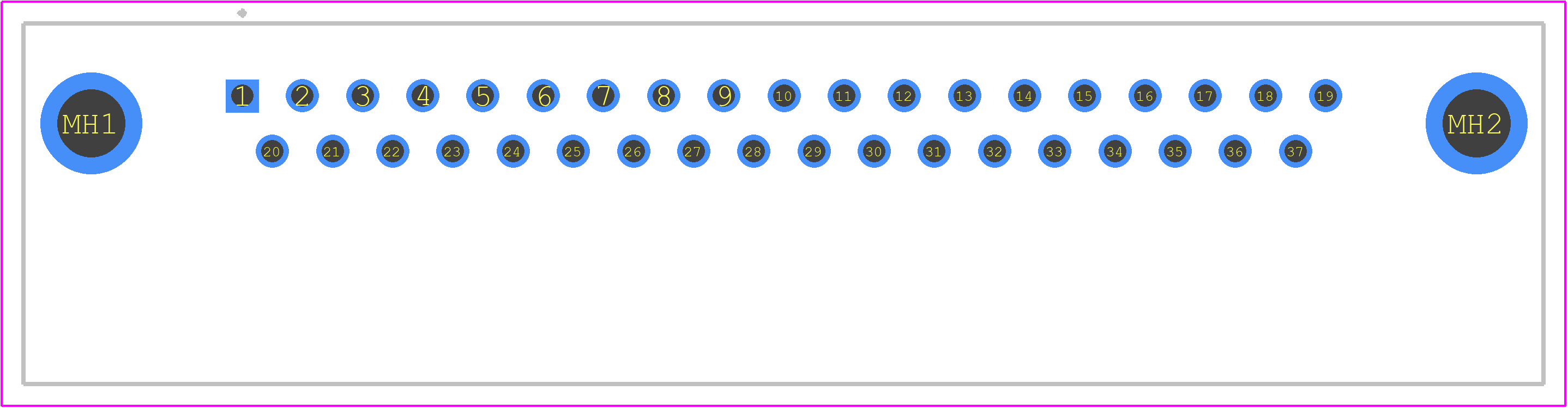

09654226801 - HARTING PCB footprint - Other - Other - D-Sub Male R/A 37 2.76 x 2.54
click to zoom
3D Models
09654226801 - HARTING - 3D model - Other - D-Sub Male R/A 37 2.76 x 2.54
click to zoom

09654226801 Details

  • Manufacturer Part Number:

    09654226801

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652, IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

09654226801 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09654226801 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09654226801 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09654226801 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09654226801 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09654226801 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09654226801 Overview

Use the download button to access the 09654226801 schematic symbol, PCB footprint, and 3D model.
