09654237801 - HARTING

Description: Connector, Wave soldering termination, Rated current: ?6.5 A, Male, Size: D-Sub 4, Thermoplastic resin, glass-fibre filled (PBTP), Plated steel

Download 09654237801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09654237801 - HARTING - PCB symbol
click to zoom
PCB Footprints

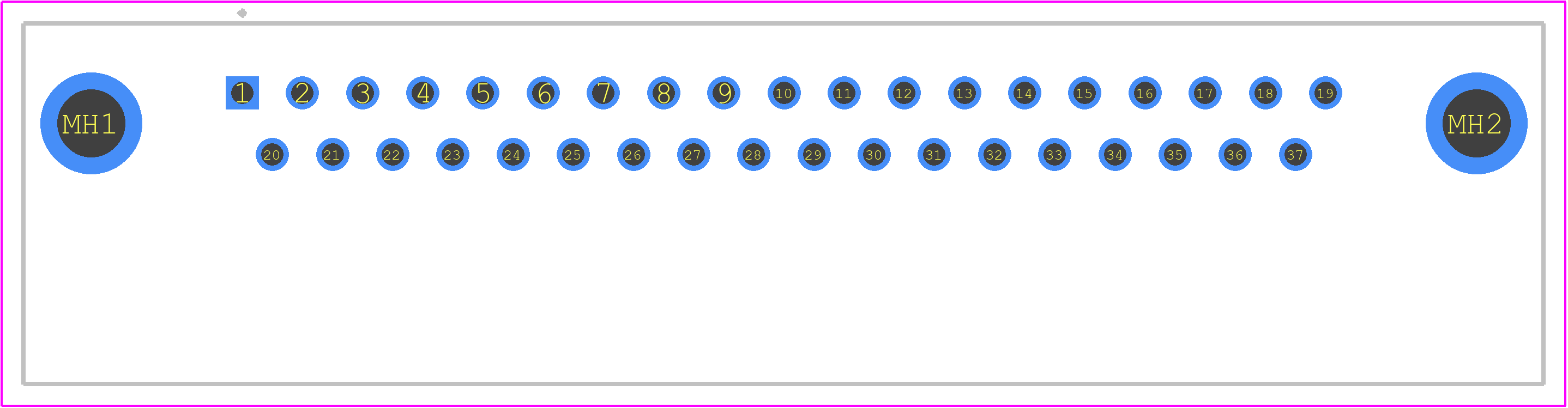

09654237801 - HARTING PCB footprint - Other - Other - D-Sub Male R/A 37 2.76 x 2.84
click to zoom
3D Models
09654237801 - HARTING - 3D model - Other - D-Sub Male R/A 37 2.76 x 2.84
click to zoom

09654237801 Details

  • Manufacturer Part Number:

    09654237801

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09654237801 Overview

Use the download button to access the 09654237801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09654, or try a keyword search, such as D Type Connectors
