Part Image

09654626813 - HARTING

Description: D-Sub 37pin male angled 2.54mm pitch, stamped, with board locks, 4-40UNC screw lock, PL2

Download 09654626813 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09654626813 - HARTING - PCB symbol
click to zoom
PCB Footprints

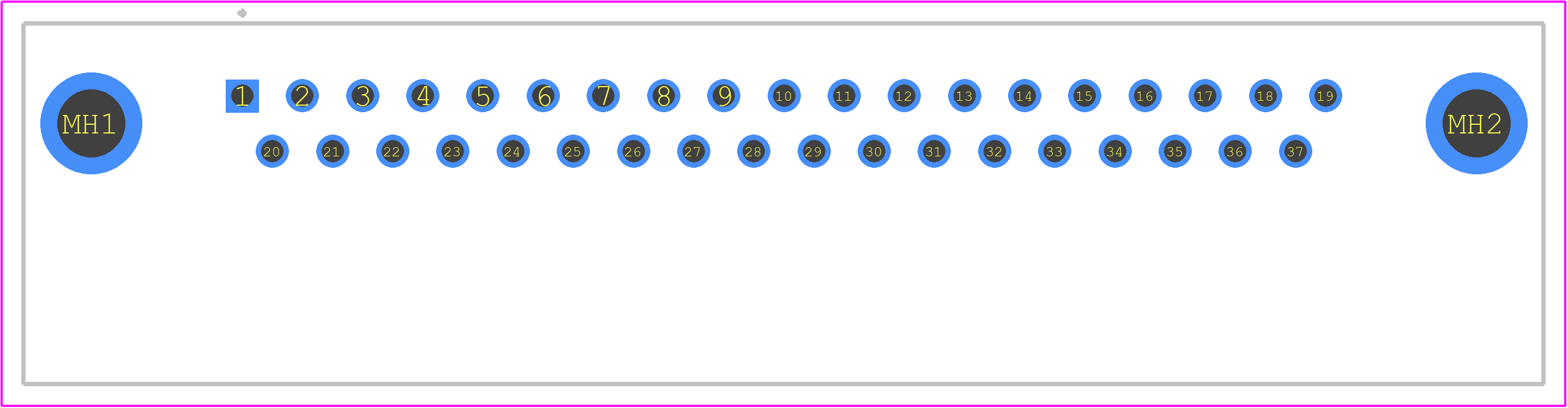

09654626813 - HARTING PCB footprint - Other - Other - D-Sub Male R/A 37 2.76 x 2.54
click to zoom
3D Models
09654626813 - HARTING - 3D model - Other - D-Sub Male R/A 37 2.76 x 2.54
click to zoom

09654626813 Details

  • Manufacturer Part Number:

    09654626813

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

09654626813 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09654626813 connector is -40°C to 125°C, as per the HARTING Technology Group's specifications.
  • Yes, the 09654626813 connector is designed to withstand high-vibration environments, making it suitable for applications in industries such as transportation, aerospace, and industrial automation.
  • The 09654626813 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 09654626813 connector is designed to be resistant to chemicals and fuels, making it suitable for use in harsh environments such as those found in the aerospace, automotive, and industrial industries.
  • The 09654626813 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09654626813 Overview

Use the download button to access the 09654626813 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09654, or try a keyword search, such as D Type Connectors
