09654636813 - HARTING

Description: D-Sub 37pin male angled 2.84mm pitch, stamped, with board locks, 4-40UNC screw lock, PL2

Download 09654636813 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09654636813 - HARTING - PCB symbol
click to zoom
PCB Footprints

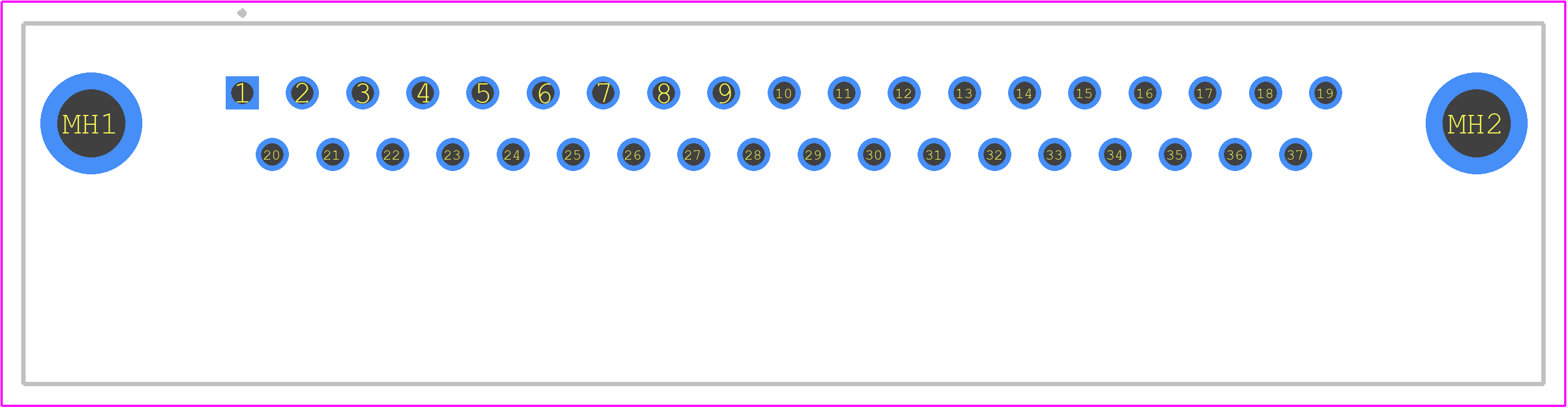

09654636813 - HARTING PCB footprint - Other - Other - D-Sub Male R/A 37 2.76 x 2.84
click to zoom
3D Models
09654636813 - HARTING - 3D model - Other - D-Sub Male R/A 37 2.76 x 2.84
click to zoom

09654636813 Details

  • Manufacturer Part Number:

    09654636813

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

09654636813 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09654636813 connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 rating for protection against dust and water ingress.
  • Yes, the connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • The maximum operating temperature of the 09654636813 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09654636813 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
