09654666812 - HARTING

Description: D-Sub THR/SMC 37pin male angled 2.54mm pitch, stamped, with board locks, 4-40UNC, PL2

Download 09654666812 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09654666812 - HARTING - PCB symbol
click to zoom
PCB Footprints

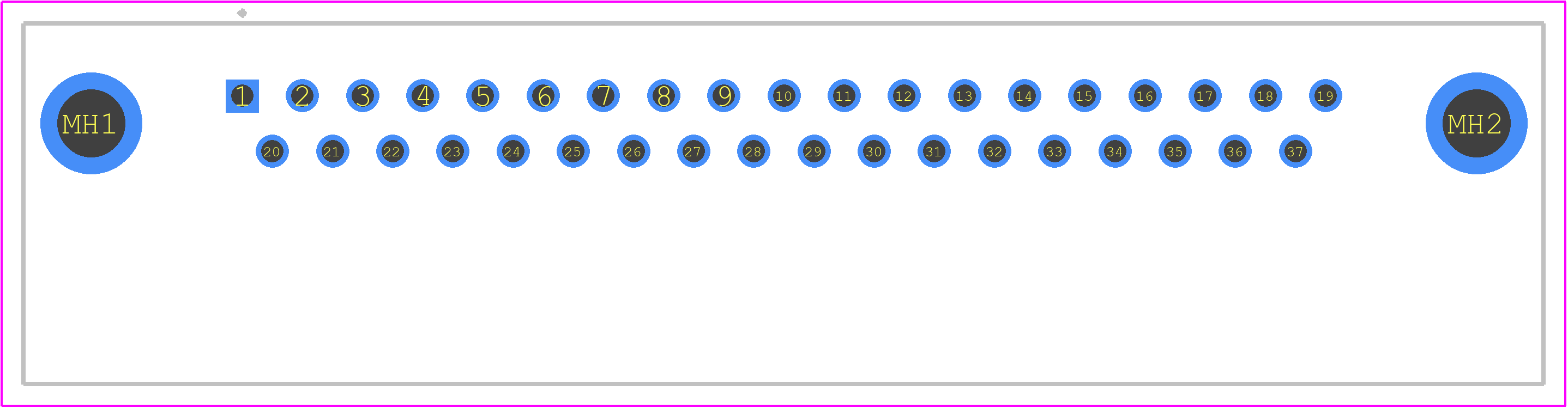

09654666812 - HARTING PCB footprint - Other - Other - D-Sub Male R/A 37 2.76 x 2.54
click to zoom
3D Models
09654666812 - HARTING - 3D model - Other - D-Sub Male R/A 37 2.76 x 2.54
click to zoom

09654666812 Details

  • Manufacturer Part Number:

    09654666812

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

09654666812 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09654666812 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09654666812 connector has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 09654666812 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The 09654666812 connector has a robust design and materials that can withstand exposure to harsh chemicals, including fuels, oils, and cleaning agents. However, it's recommended to consult the HARTING chemical resistance chart for specific compatibility information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09654666812 Overview

Use the download button to access the 09654666812 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09654, or try a keyword search, such as D Type Connectors
