09661137600 - HARTING

Description: Connector, Wave soldering termination, Rated current: ‌6.5 A, Female, Size: D-Sub 1, Thermoplastic resin, glass-fibre filled (PBTP), Plated steel, Contacts: 9, Copper alloy

Download 09661137600 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09661137600 - HARTING - PCB symbol
click to zoom
PCB Footprints

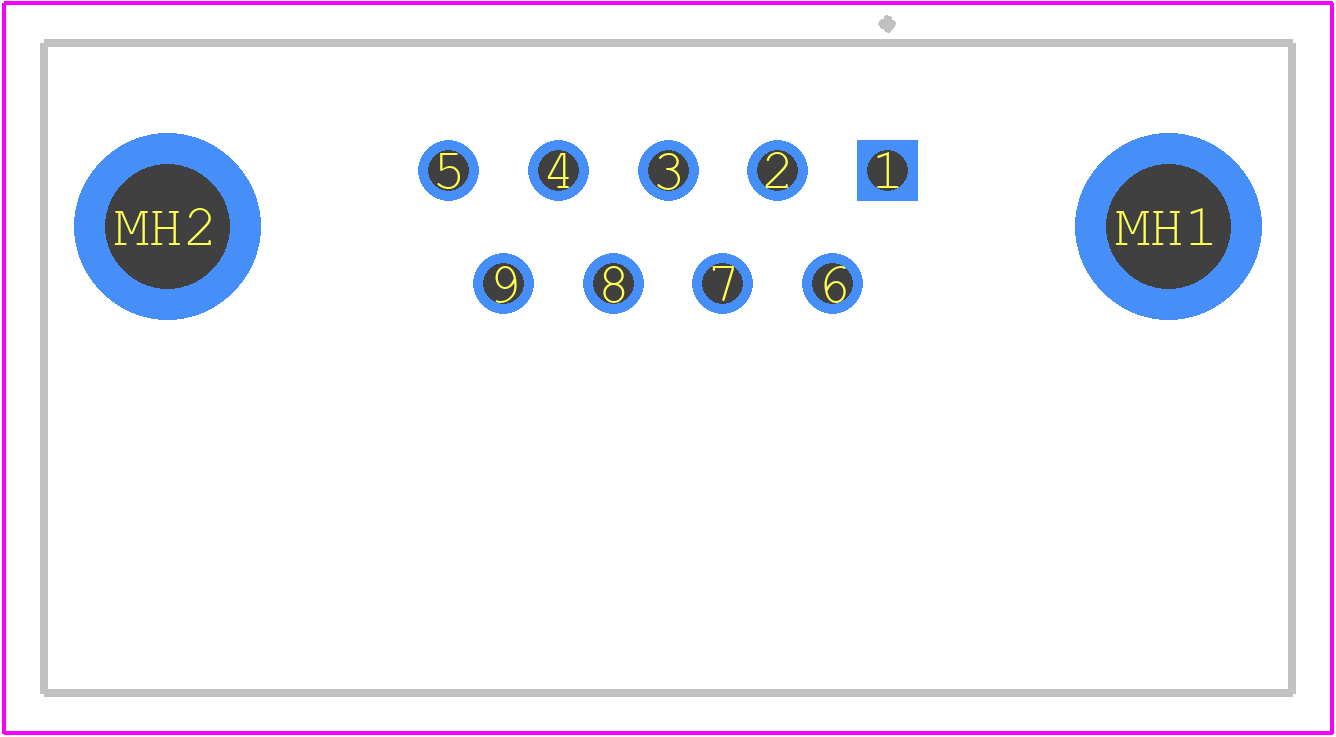

09661137600 - HARTING PCB footprint - Other - Other - D-Sub R/A 2.74x2.84mm 9pin 10.4
click to zoom
3D Models
09661137600 - HARTING - 3D model - Other - D-Sub R/A 2.74x2.84mm 9pin 10.4
click to zoom

09661137600 Details

  • Manufacturer Part Number:

    09661137600

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09661137600 Overview

Use the download button to access the 09661137600 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09661, or try a keyword search, such as D Type Connectors
