Technical Content
Part Image

09661513512 - HARTING

Description: D-Sub 9pin female straight, stamped, with board locks, 4-40UNC, PL1

Download 09661513512 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09661513512 - HARTING - PCB symbol
click to zoom

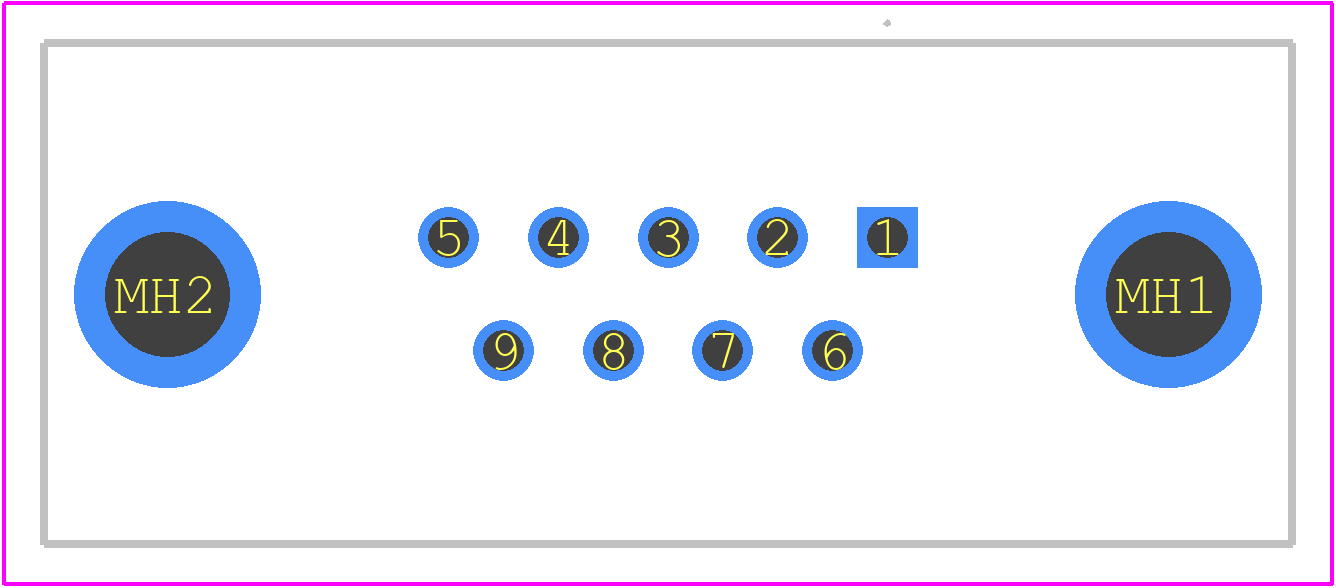

PCB Footprints
09661513512 - HARTING PCB footprint - Other - Other - 09661513512-3
click to zoom
3D Models
09661513512 - HARTING - 3D model - Other - 09661513512-3
click to zoom

09661513512 Details

  • Manufacturer Part Number:

    09661513512

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    PURE TIN OVER NICKEL

  • Contact Finish Termination:

    Pure Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

09661513512 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 09661513512 connector is -40°C to 125°C, as specified by the IEC 61984 standard.
  • Yes, the 09661513512 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 09661513512 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's environmental specifications to ensure the connector meets the specific requirements of your application.
  • The 09661513512 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections over an extended period.
  • The 09661513512 connector is designed to be compatible with other HARTING products and connectors that follow the same industry standards. However, it's recommended to consult HARTING's compatibility charts and datasheets to ensure seamless integration with other products.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09661513512 Overview

Use the download button to access the 09661513512 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09661, or try a keyword search, such as D Type Connectors
