Technical Content
Part Image

09661517512 - HARTING

Description: D-Sub 9pin female straight, stamped, with board locks, 4-40UNC, PL3

Download 09661517512 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09661517512 - HARTING - PCB symbol
click to zoom

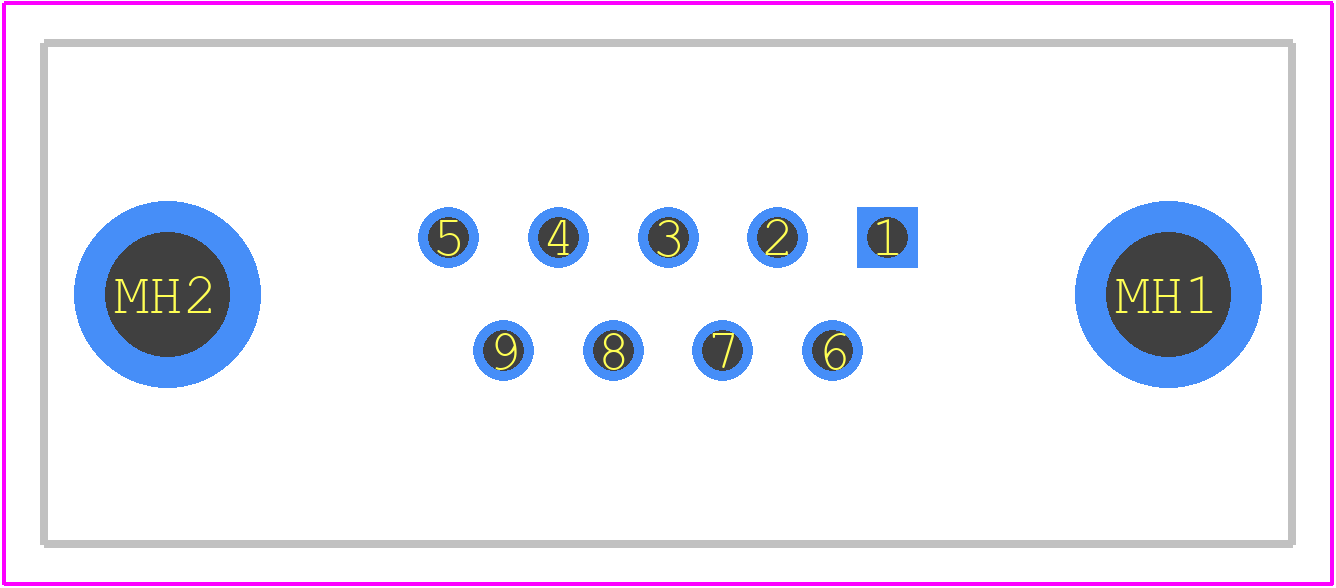

PCB Footprints
09661517512 - HARTING PCB footprint - Other - Other - 09661517512-1
click to zoom
3D Models
09661517512 - HARTING - 3D model - Other - 09661517512-1
click to zoom

09661517512 Details

  • Manufacturer Part Number:

    09661517512

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09661517512 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09661517512 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09661517512 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2.
  • Yes, the 09661517512 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • Yes, the 09661517512 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexible and modular system design.
  • The maximum current rating of the 09661517512 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09661517512 Overview

Use the download button to access the 09661517512 schematic symbol, PCB footprint, and 3D model.
