09661526616 - HARTING

Description: D-Sub 9pin female low profile angled, 2.54mm pitch, stamped, with board locks, 4-40UNC, PL2

Download 09661526616 Model
Schematic
symbols

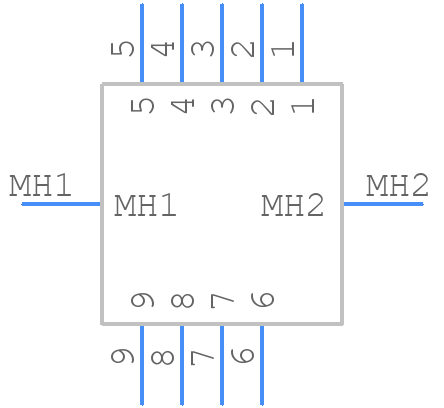

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

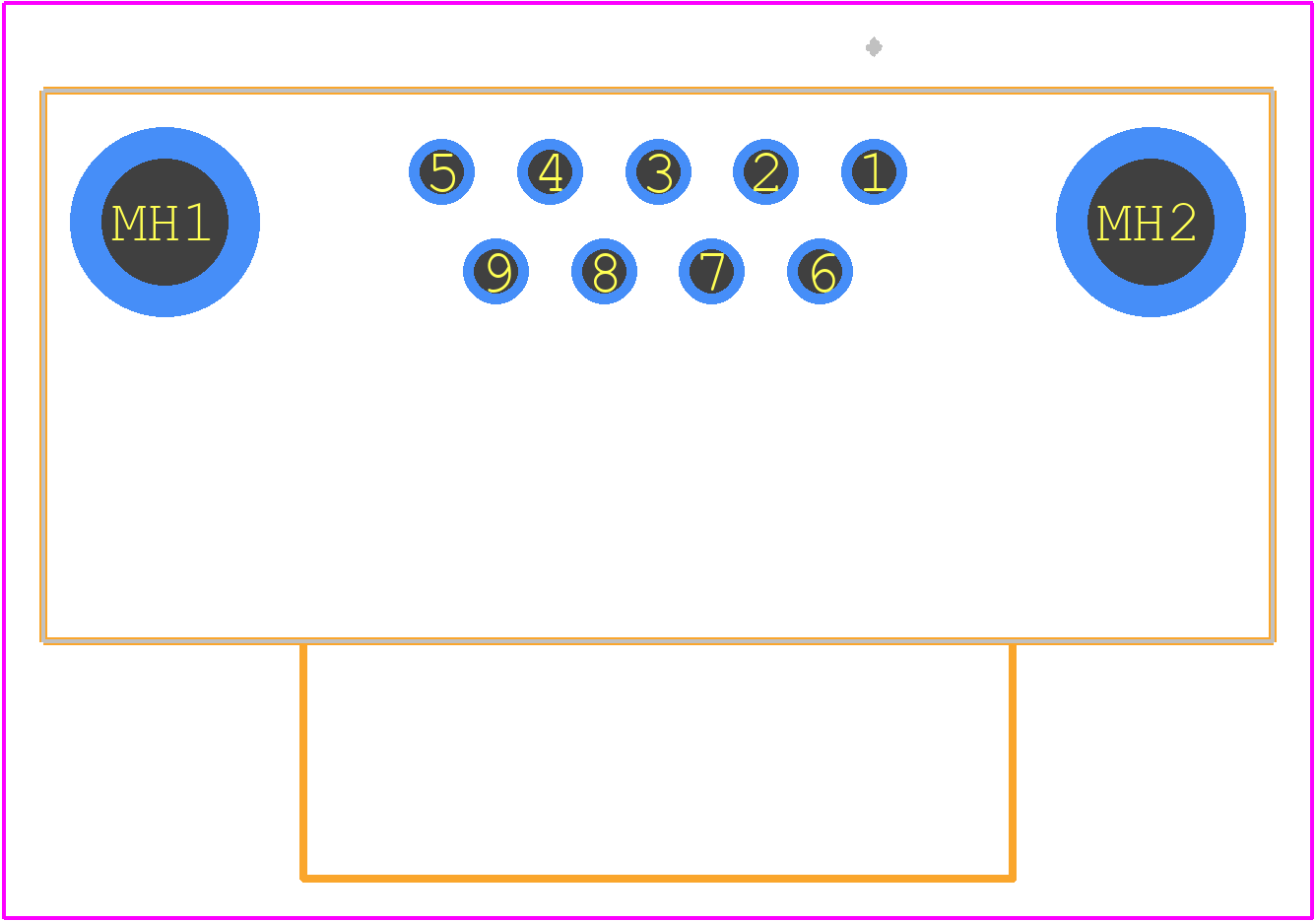

09661526616 - HARTING PCB footprint - Other - Other - 09661526616-2
click to zoom
3D Models
09661526616 - HARTING  - 3D model - Other - 09661526616-2
click to zoom

09661526616 Details

  • Manufacturer Part Number:

    09661526616

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: DIN 41 652, IEC 60 807

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.551 inch

  • Body Length:

    1.217 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insertion Force-Max:

    3.336 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.108 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    THREADED

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    6.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Terminal Length:

    0.114 inch

  • Terminal Pitch:

    2.7432 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    3.336 N

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09661526616 Overview

Use the download button to access the 09661526616 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09661, or try a keyword search, such as D Type Connectors
