09661566610 - HARTING

Description: D-Sub THR/SMC 9pin female angled 2.54mm pitch, stamped, with board locks, 3.1mm hole, PL2

Download 09661566610 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09661566610 - HARTING - PCB symbol
click to zoom
PCB Footprints

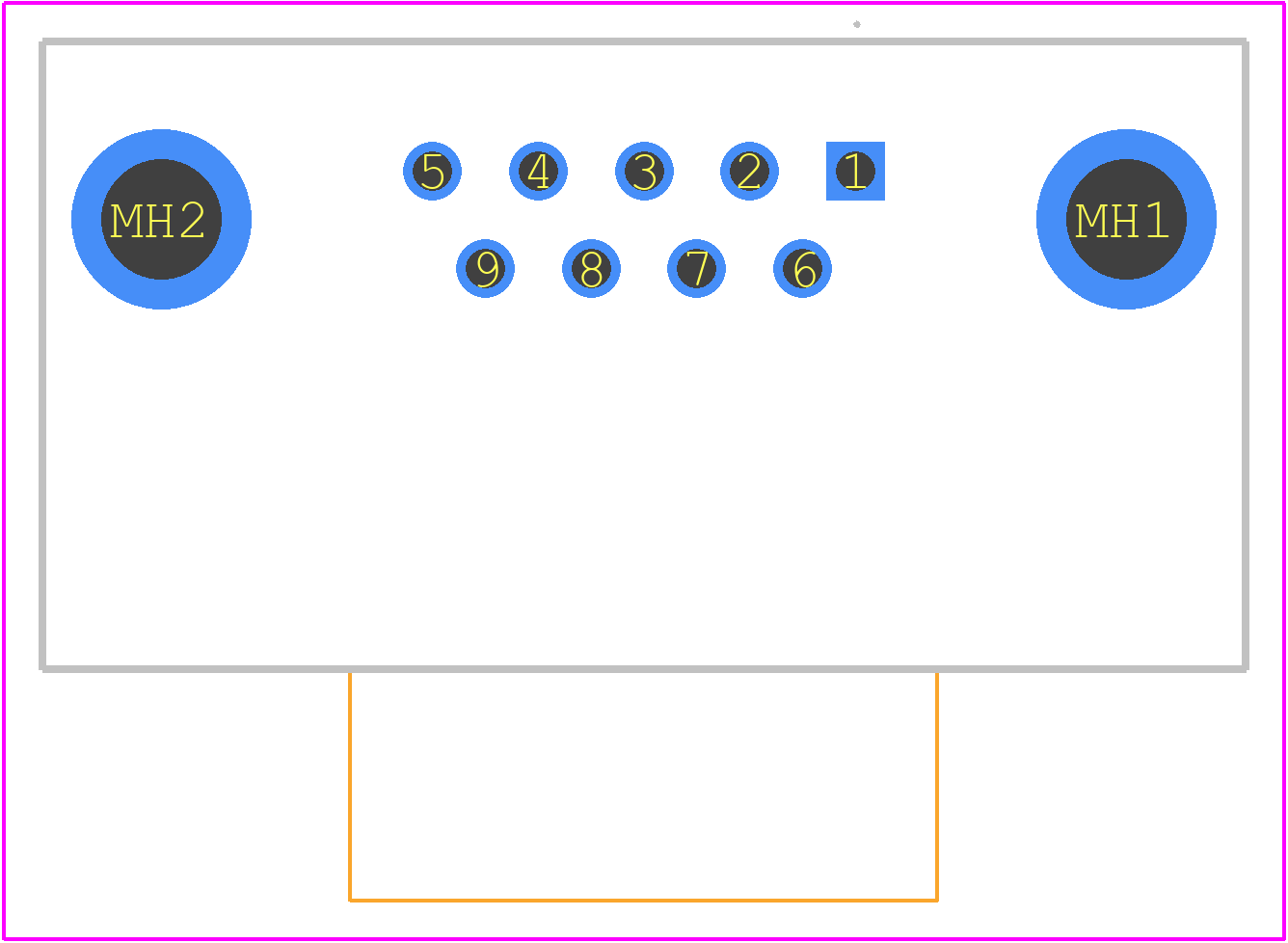

09661566610 - HARTING PCB footprint - Other - Other - 09661566610-3
click to zoom
3D Models
09661566610 - HARTING - 3D model - Other - 09661566610-3
click to zoom

09661566610 Details

  • Manufacturer Part Number:

    09661566610

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Additional Feature:

    STANDARDS: MIL-C-24308; DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    METAL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09661566610 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09661566610 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the connector is designed for automated assembly and is compatible with reflow soldering processes up to 260°C (500°F) for 30 seconds.
  • The operating temperature range for the 09661566610 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of industrial and transportation applications.
  • The connector has a IP67 rating, which means it is protected against dust and water ingress up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and cable management to maintain the IP67 rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09661566610 Overview

Use the download button to access the 09661566610 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09661, or try a keyword search, such as D Type Connectors
