09662566612 - HARTING

Description: D-Sub THR/SMC 15pin female angled 2.54mm pitch, stamped, with board locks, 4-40UNC, PL2

Download 09662566612 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09662566612 - HARTING - PCB symbol
click to zoom
PCB Footprints

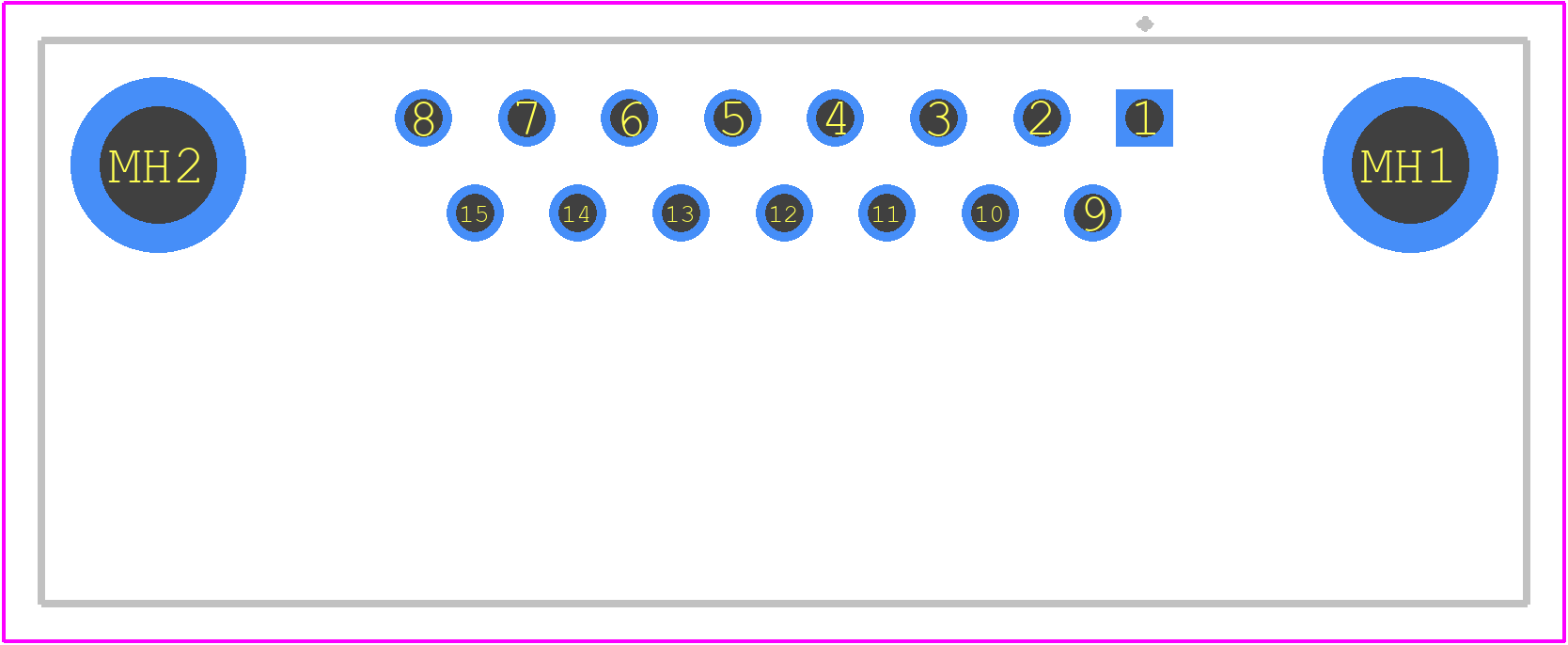

09662566612 - HARTING PCB footprint - Other - Other - D-SUb R/A 2.74x2.54mm 15Pin
click to zoom
3D Models
09662566612 - HARTING - 3D model - Other - D-SUb R/A 2.74x2.54mm 15Pin
click to zoom

09662566612 Details

  • Manufacturer Part Number:

    09662566612

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09662566612 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09662566612 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09662566612 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09662566612 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09662566612 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09662566612 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09662566612 Overview

Use the download button to access the 09662566612 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09662, or try a keyword search, such as D Type Connectors
