09663146506 - HARTING

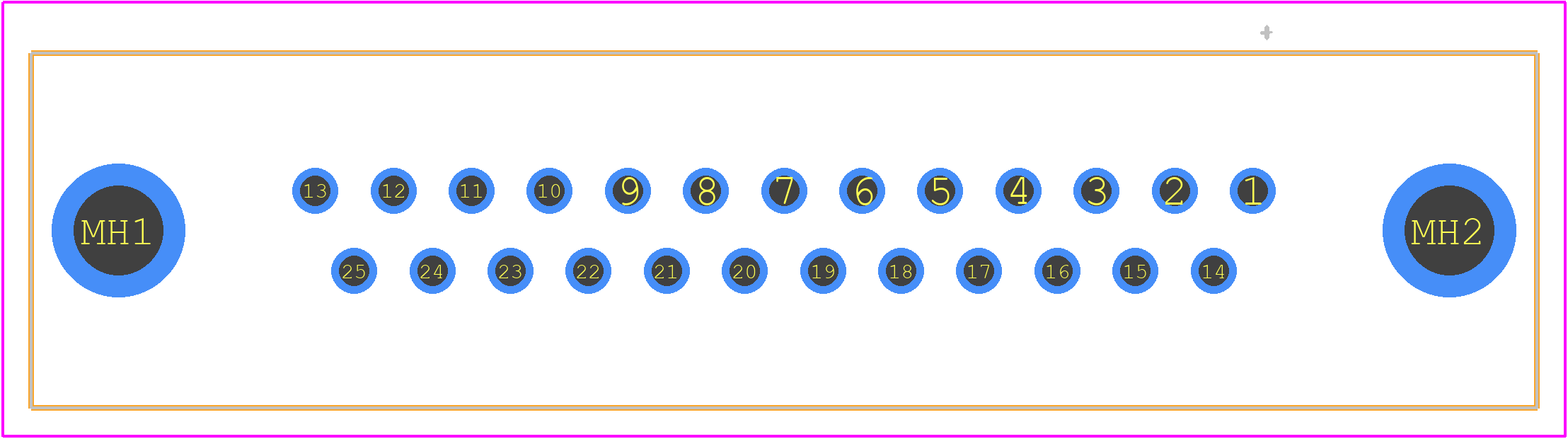

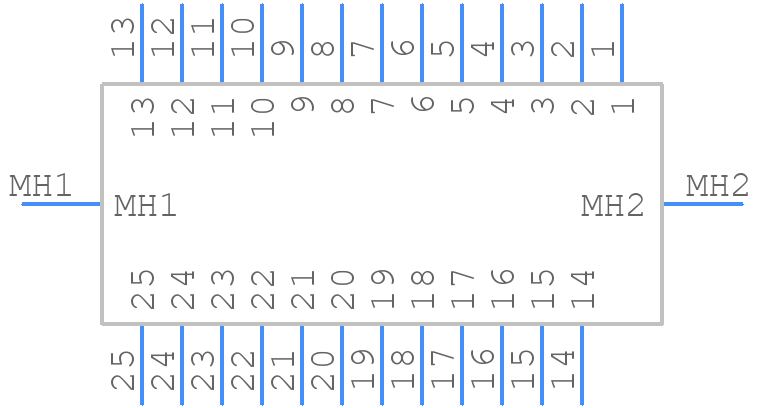

09663146506 Details

• Manufacturer Part Number:

  09663146506

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  0

• Additional Feature:

  STANDARD: DIN 41652

• Body Breadth:

  0.492 inch

• Body Depth:

  0.224 inch

• Body Length:

  2.091 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  3.336 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  200 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Rated Current (Signal):

  6.5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Size:

  3/B

• Terminal Length:

  0.171 inch

• Terminal Pitch:

  2.7686 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.336 N
