Part Image

09663625811 - HARTING

Description: D-Sub Standard Connectors DSUB SV ML SSDP ANG73-254 25P AUS4

Download 09663625811 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09663625811 - HARTING - PCB symbol
click to zoom

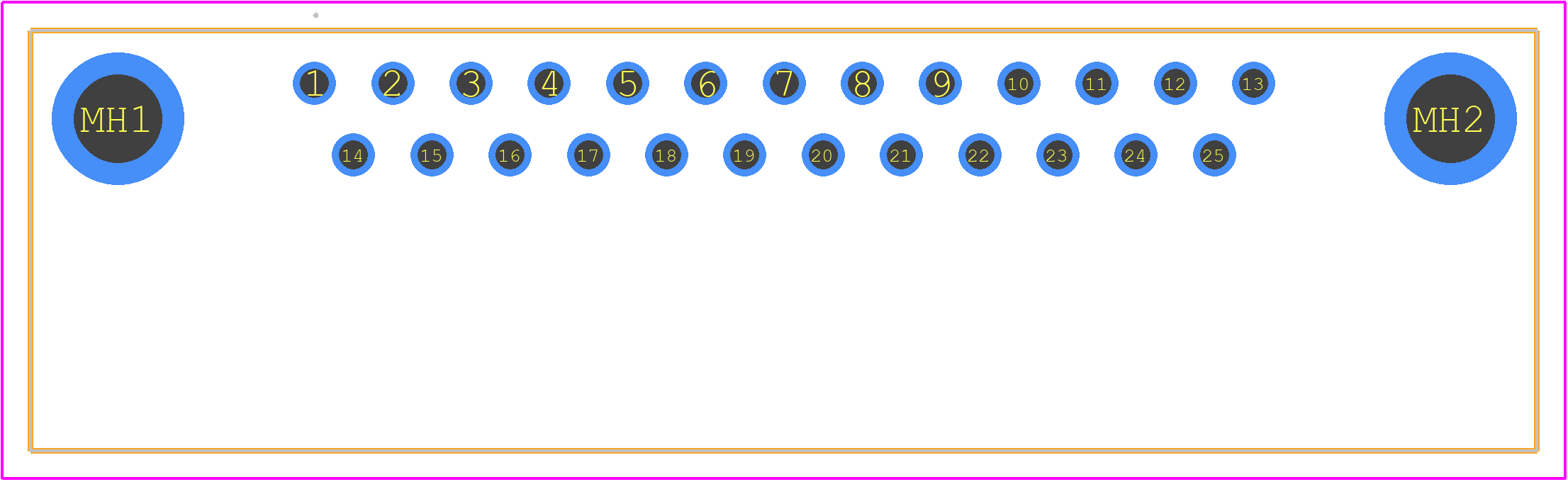

PCB Footprints
09663625811 - HARTING PCB footprint - Other - Other - 09663625811-2
click to zoom
3D Models
09663625811 - HARTING - 3D model - Other - 09663625811-2
click to zoom

09663625811 Details

  • Manufacturer Part Number:

    09663625811

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Additional Feature:

    STANDARDS: MIL-C-24308; DIN 41652, PANEL MOUNT

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Gender:

    MALE

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    YES

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    METAL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

09663625811 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09663625811 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09663625811 connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 rating for protection against dust and water ingress.
  • Yes, the 09663625811 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • The 09663625811 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09663625811 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and unmating of different connectors within the series.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09663625811 Overview

Use the download button to access the 09663625811 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09663, or try a keyword search, such as D Type Connectors
