09675156758 - HARTING

Description: D-Sub IP67 15pin female, angled solder pins, rear plastic mounting, w/ 4-40UNC thread, board locks, PLS4

Download 09675156758 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09675156758 - HARTING - PCB symbol
click to zoom

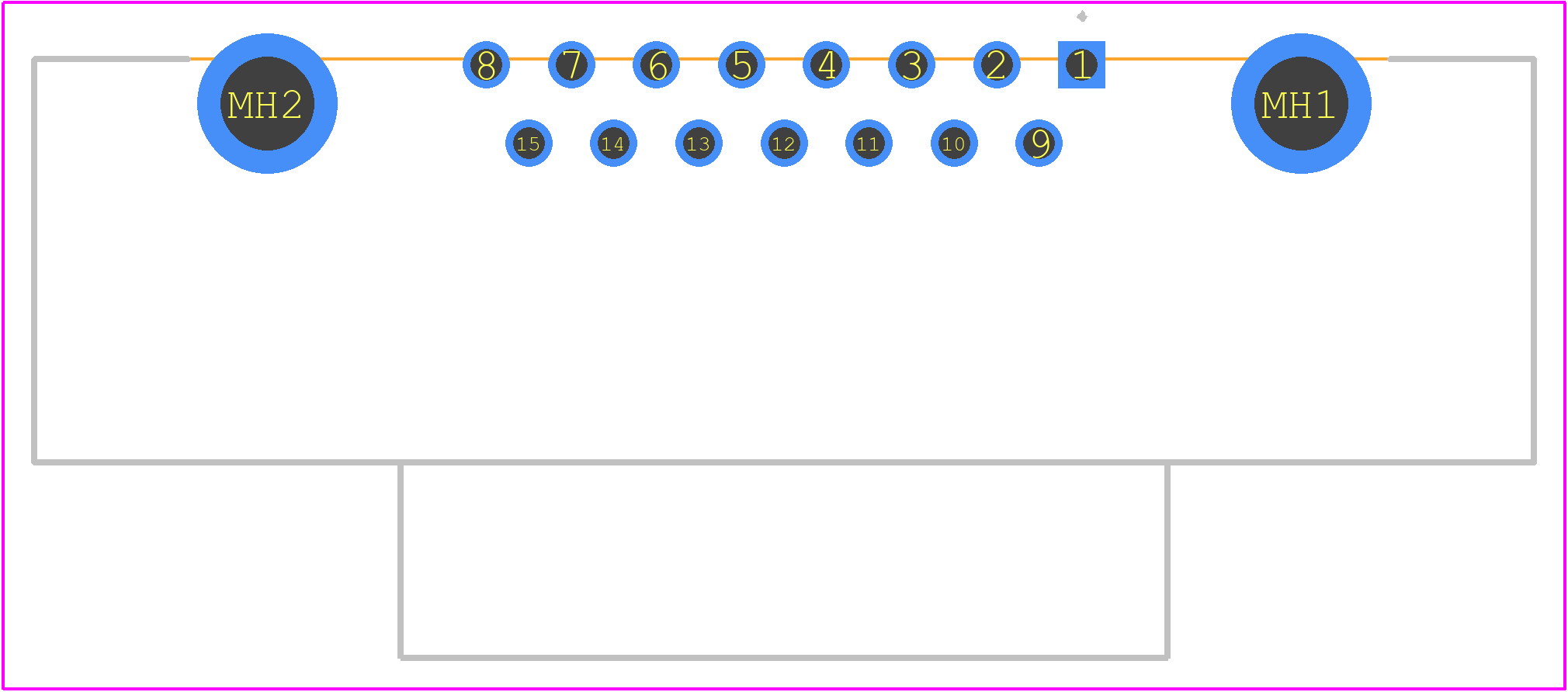

PCB Footprints
09675156758 - HARTING PCB footprint - Other - Other - 09675156758
click to zoom
3D Models
09675156758 - HARTING - 3D model - Other - 09675156758
click to zoom

09675156758 Details

  • Manufacturer Part Number:

    09675156758

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09675156758 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09675156758 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in applications with moderate to high vibration levels.
  • Yes, the connector is designed for automated assembly and reflow soldering processes. However, it's crucial to follow HARTING's recommended soldering profiles and handling guidelines to ensure reliable assembly.
  • The operating temperature range for the 09675156758 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector and mating components in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09675156758 Overview

Use the download button to access the 09675156758 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09675, or try a keyword search, such as D Type Connectors
