09675157658 - HARTING

Description: D-Sub IP67 15pin male, angled solder pins, rear plastic mounting, w/ 4-40UNC thread, board locks, PLS4

Download 09675157658 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09675157658 - HARTING - PCB symbol
click to zoom
PCB Footprints

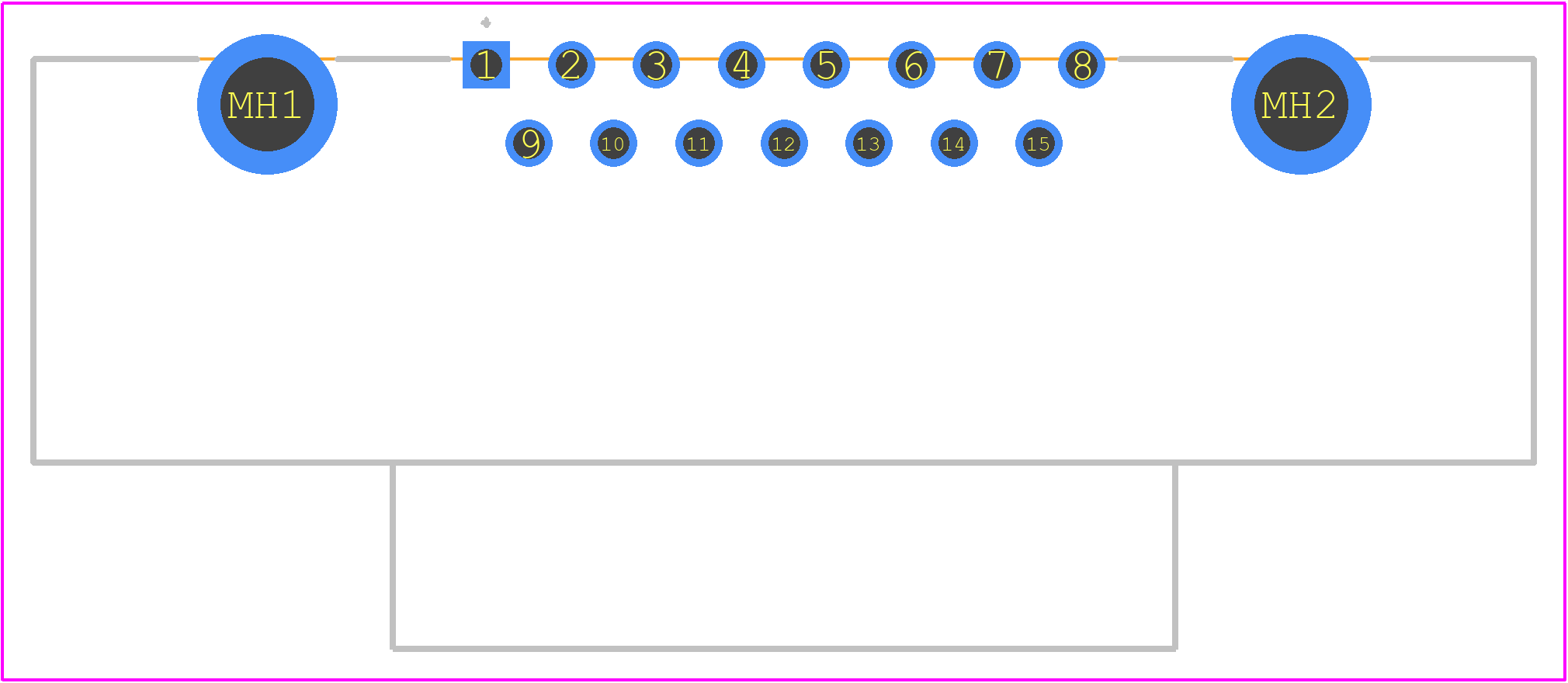

09675157658 - HARTING PCB footprint - Other - Other - 09675157658-1
click to zoom
3D Models
09675157658 - HARTING - 3D model - Other - 09675157658-1
click to zoom

09675157658 Details

  • Manufacturer Part Number:

    09675157658

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09675157658 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09675157658 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09675157658 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, automotive systems, and aerospace systems.
  • The 09675157658 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 09675157658 connector is designed to withstand exposure to harsh chemicals, including fuels, oils, and cleaning agents, making it suitable for use in industrial and automotive applications.
  • The 09675157658 connector has a mating cycle of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
