Technical Content
Part Image

09675158775 - HARTING

Description: D-Sub IP67 15pin female, straight solder pins, rear plastic mounting, w/ M3 thread, board locks, PLS4

Download 09675158775 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09675158775 - HARTING - PCB symbol
click to zoom

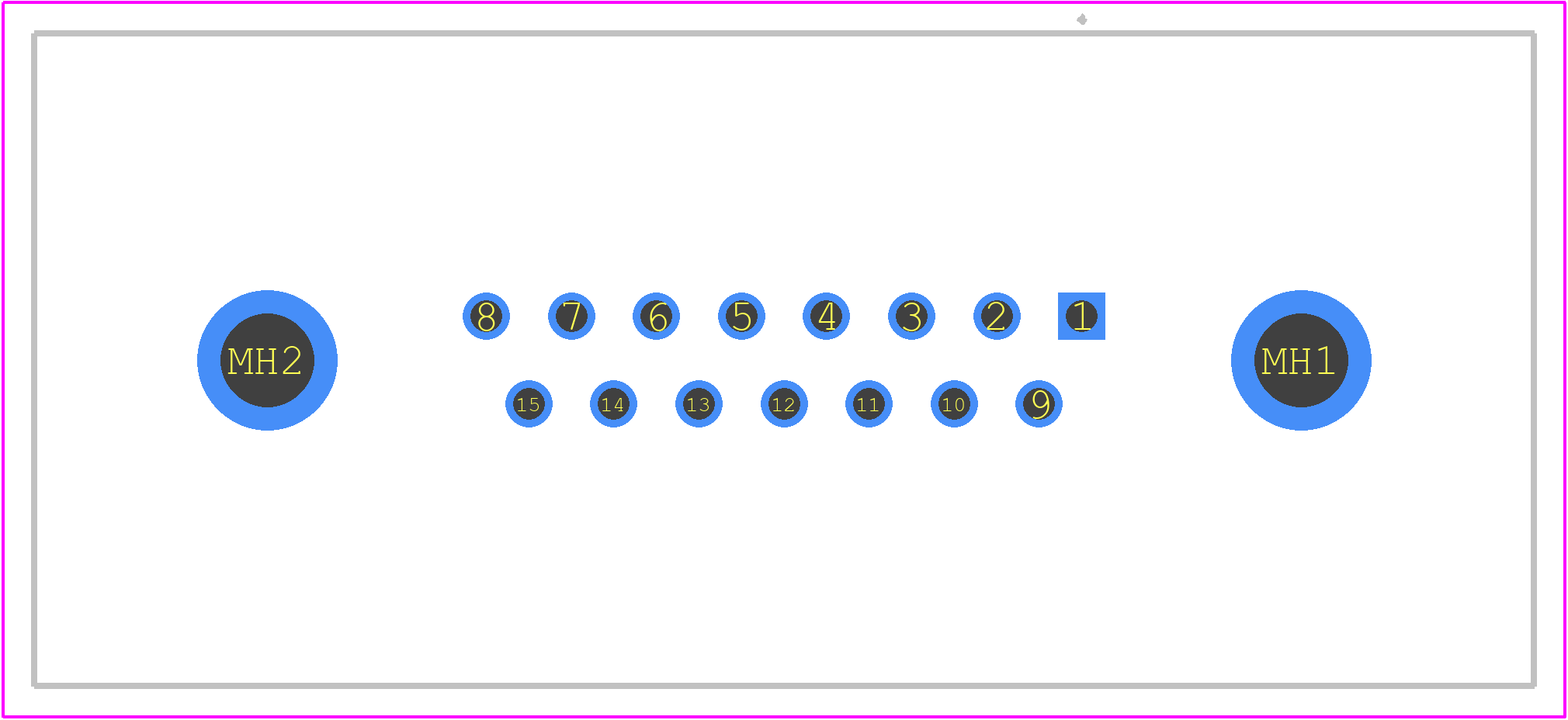

PCB Footprints
09675158775 - HARTING PCB footprint - Other - Other - 09675158775
click to zoom
3D Models
09675158775 - HARTING - 3D model - Other - 09675158775
click to zoom

09675158775 Details

  • Manufacturer Part Number:

    09675158775

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09675158775 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09675158775 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09675158775 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2, making it suitable for use in harsh environments.
  • Yes, the 09675158775 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in humid or wet environments.
  • The 09675158775 connector has a mating cycle of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09675158775 connector is part of the HARTING Han series, which means it is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09675158775 Overview

Use the download button to access the 09675158775 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09675, or try a keyword search, such as D Type Connectors
