09676157658 footprint, schematic symbol and 3D model by HARTING

Symbol

click to zoom

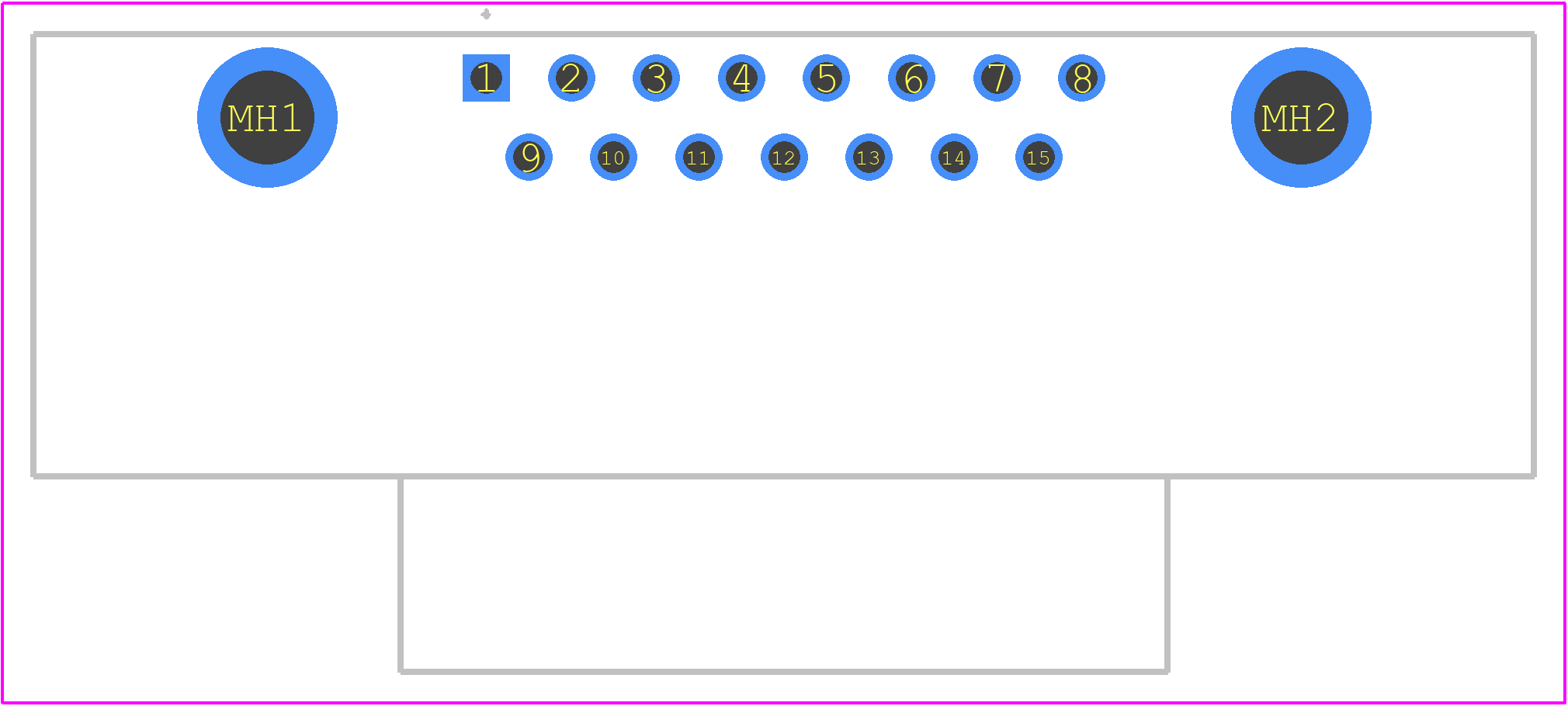

PCB Footprints

09676157658 - HARTING PCB footprint - Other - Other - 09676157658

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 09676157658
Part Number 09676157658
Manufacturer HARTING
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 09676157658
Released Date Jul 4, 2021
Last Modified Date May 24, 2023 9:08 AM UTC
Pinout / Pin List Click Here (Member Only)

09676157658 Details

Manufacturer Part Number:
09676157658
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Czechia
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
HARTING Technology Group
YTEOL:
0
Additional Feature:
STANDARD: DIN 41652
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
YES
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
BRASS
Shell Size:
A
Termination Type:
SOLDER
Total Number of Contacts:
15
UL Flammability Code:
94V-0

09676157658 Frequently Asked Questions (FAQs)

The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
Yes, the 09676157658 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
Yes, the connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
The maximum operating temperature of the 09676157658 connector is 125°C, as specified in the datasheet.
Yes, the 09676157658 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

09676157658 Overview

Use the download button to access the 09676157658 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 09676, or try a keyword search, such as D Type Connectors
