09676159675 - HARTING

Description: D-Sub IP67 15pin male, straight solder pins, rear metal mounting, w/ M3 thread, board locks, PLS4

Download 09676159675 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09676159675 - HARTING - PCB symbol
click to zoom
PCB Footprints

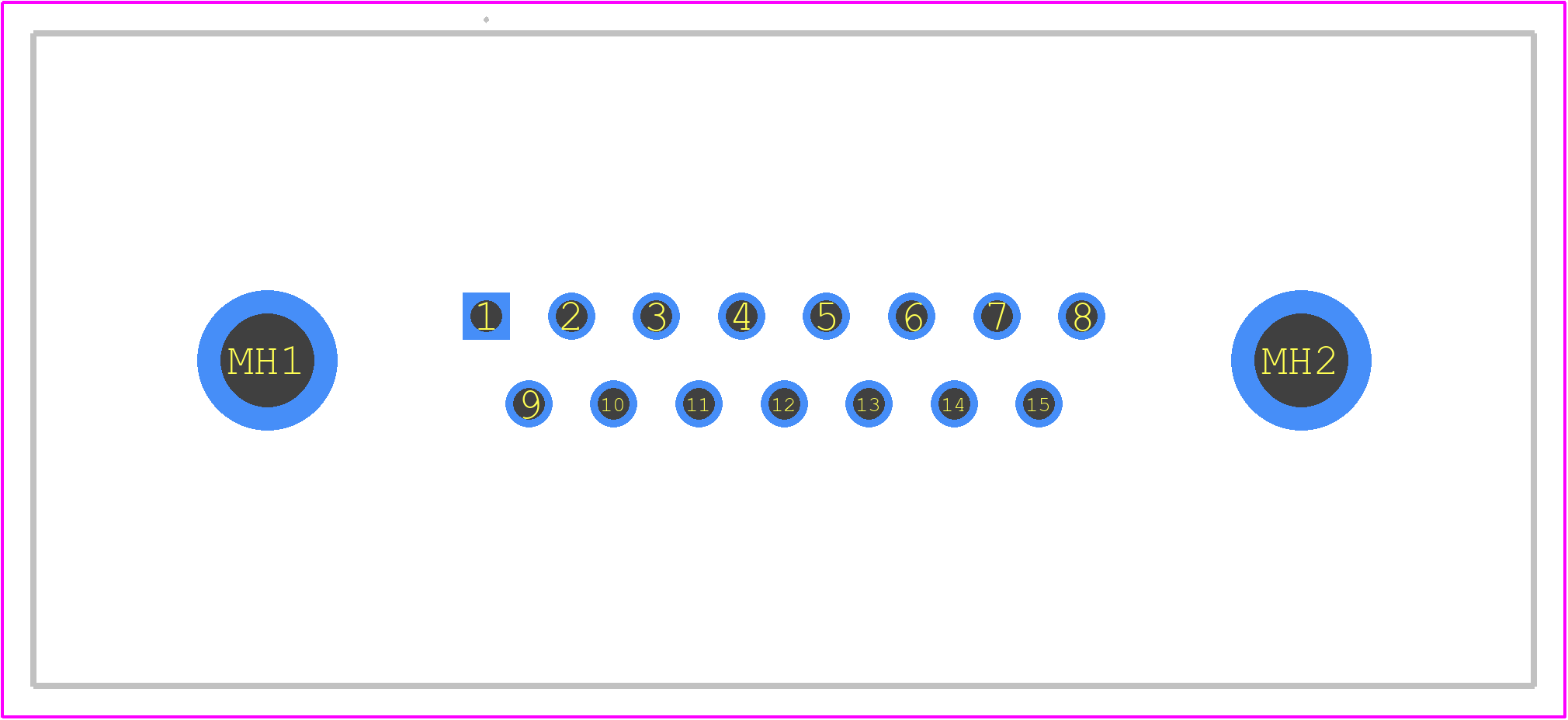

09676159675 - HARTING PCB footprint - Other - Other - 09676159675-4
click to zoom
3D Models
09676159675 - HARTING - 3D model - Other - 09676159675-4
click to zoom

09676159675 Details

  • Manufacturer Part Number:

    09676159675

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09676159675 Overview

Use the download button to access the 09676159675 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09676, or try a keyword search, such as D Type Connectors
