09676376775 - HARTING

Description: D-Sub IP67 37pin female, straight solder pins, rear metal mounting, w/ 4-40UNC thread, board locks, PLS4

Download 09676376775 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09676376775 - HARTING - PCB symbol
click to zoom
PCB Footprints

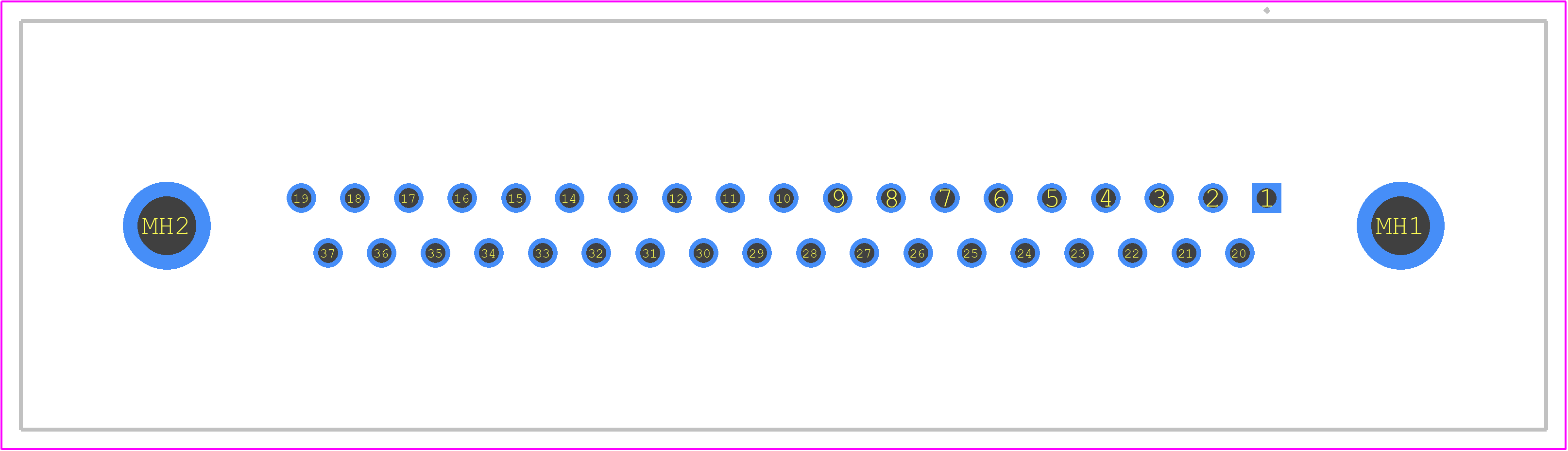

09676376775 - HARTING PCB footprint - Other - Other - 09676376775
click to zoom
3D Models
09676376775 - HARTING - 3D model - Other - 09676376775
click to zoom

09676376775 Details

  • Manufacturer Part Number:

    09676376775

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09676376775 Overview

Use the download button to access the 09676376775 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09676, or try a keyword search, such as D Type Connectors
