09676506775 - HARTING

Description: D-Sub IP67 50pin female, straight solder pins, rear metal mounting, w/ 4-40UNC thread, board locks, PLS4

Download 09676506775 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09676506775 - HARTING - PCB symbol
click to zoom
PCB Footprints

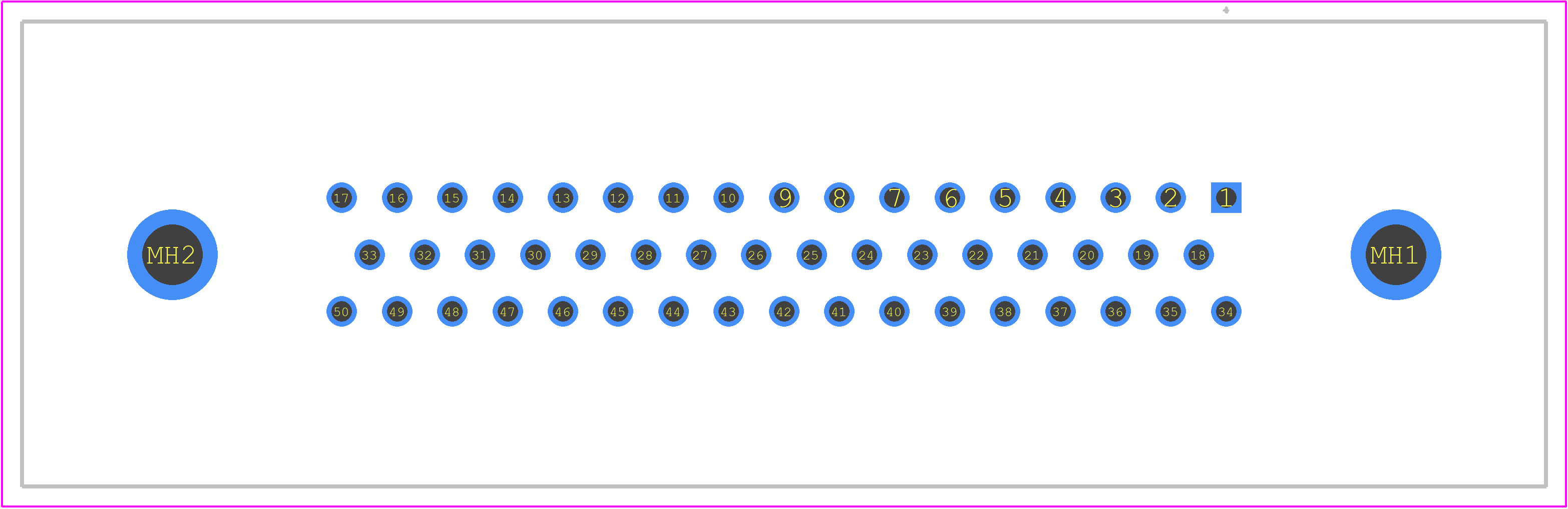

09676506775 - HARTING PCB footprint - Other - Other - 09676506775
click to zoom
3D Models
09676506775 - HARTING - 3D model - Other - 09676506775
click to zoom

09676506775 Details

  • Manufacturer Part Number:

    09676506775

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

09676506775 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09676506775 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09676506775 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2, making it suitable for use in harsh environments.
  • Yes, the 09676506775 connector is designed to operate in high-humidity environments and meets the requirements of IEC 60529 IP67, making it suitable for use in outdoor and industrial applications.
  • The 09676506775 connector has a mating cycle of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09676506775 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09676506775 Overview

Use the download button to access the 09676506775 schematic symbol, PCB footprint, and 3D model.
