Part Image

09676507658 - HARTING

Description: D-Sub IP67 50pin male, angled solder pins, rear metal mounting, w/ 4-40UNC thread, board locks, PLS4

Download 09676507658 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09676507658 - HARTING - PCB symbol
click to zoom

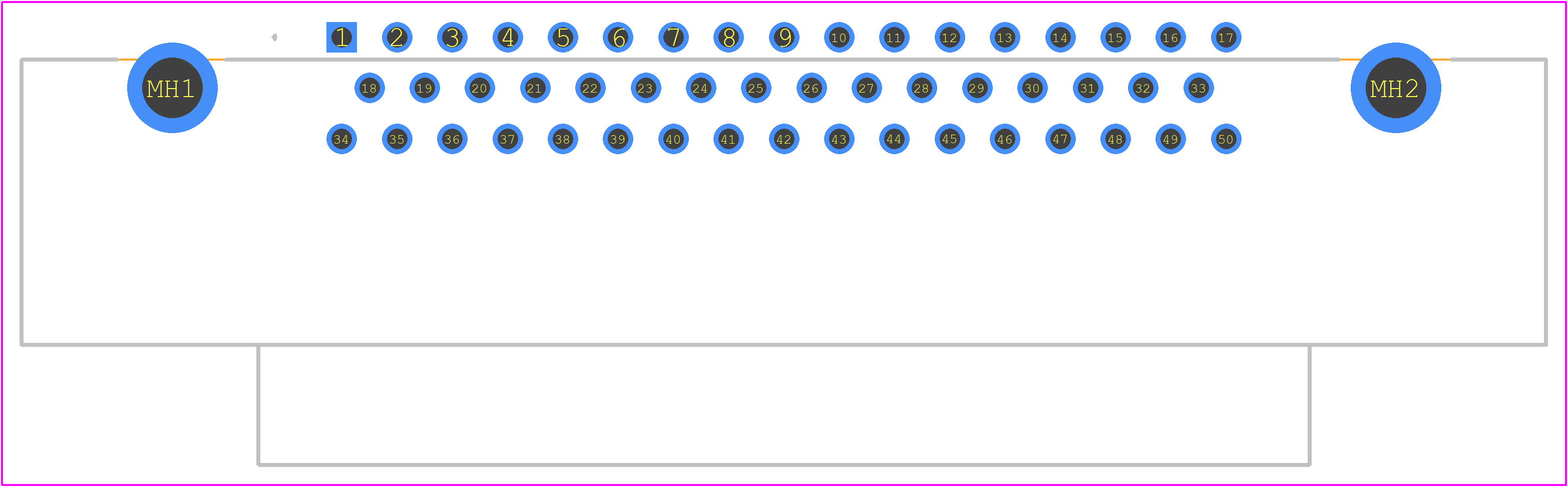

PCB Footprints
09676507658 - HARTING PCB footprint - Other - Other - 09676507658-5
click to zoom
3D Models
09676507658 - HARTING - 3D model - Other - 09676507658-5
click to zoom

09676507658 Details

  • Manufacturer Part Number:

    09676507658

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    D

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

09676507658 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09676507658 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09676507658 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
