09681535613 - HARTING

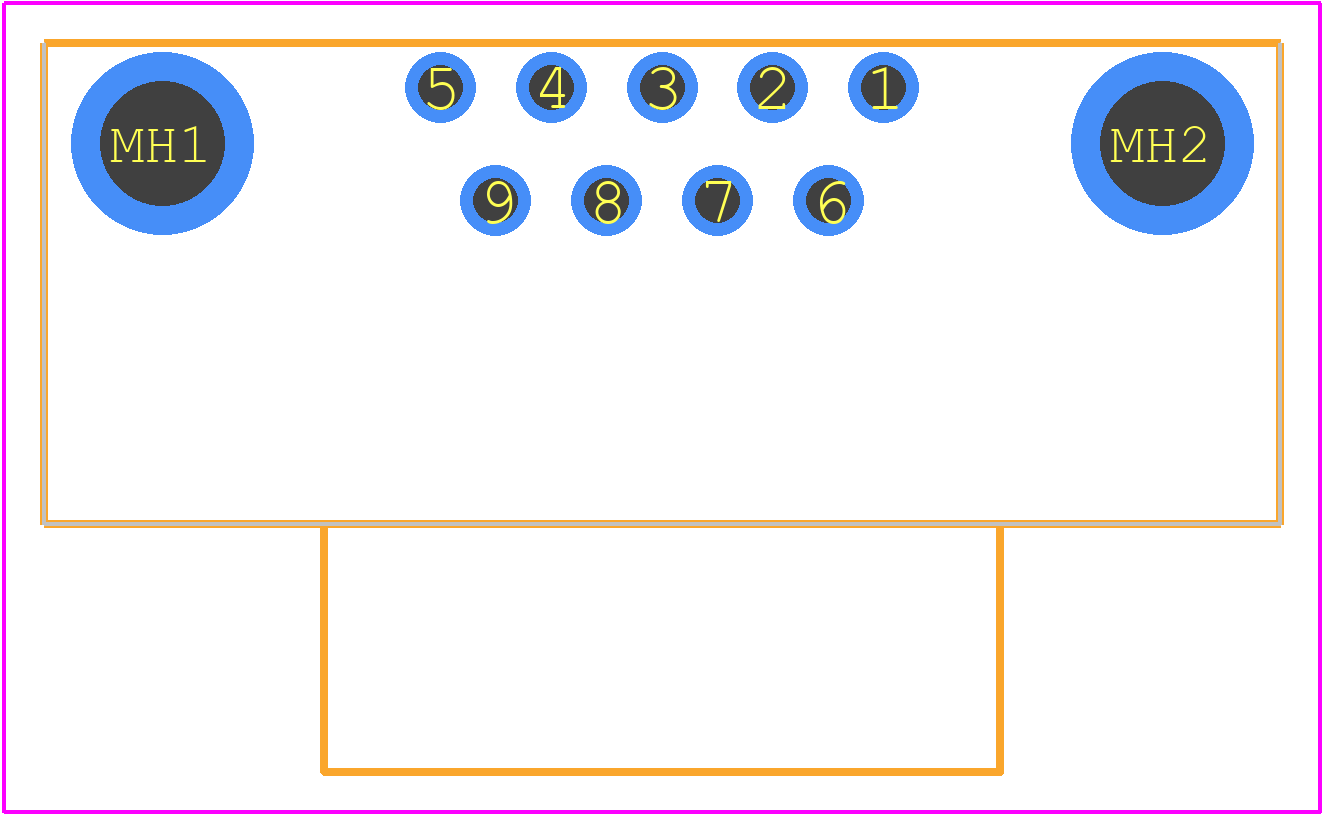

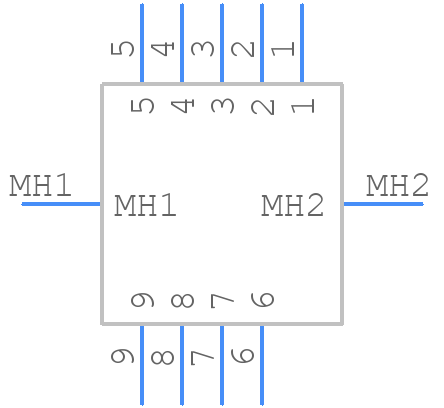

09681535613 Details

• Manufacturer Part Number:

  09681535613

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8.5

• Additional Feature:

  STANDARDS: DIN 41652; IEC 60807

• Body Breadth:

  0.494 inch

• Body Depth:

  0.472 inch

• Body Length:

  1.217 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  YES

• Insertion Force-Max:

  3.336 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.108 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  SCREWLOCKS

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  6.5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Length:

  0.126 inch

• Terminal Pitch:

  2.7432 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.336 N
