09681537611 - HARTING

Description: D-Sub 9pin female angled, US Footprint, stamped, with board locks, M3, PL3

Download 09681537611 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09681537611 - HARTING - PCB symbol
click to zoom
PCB Footprints

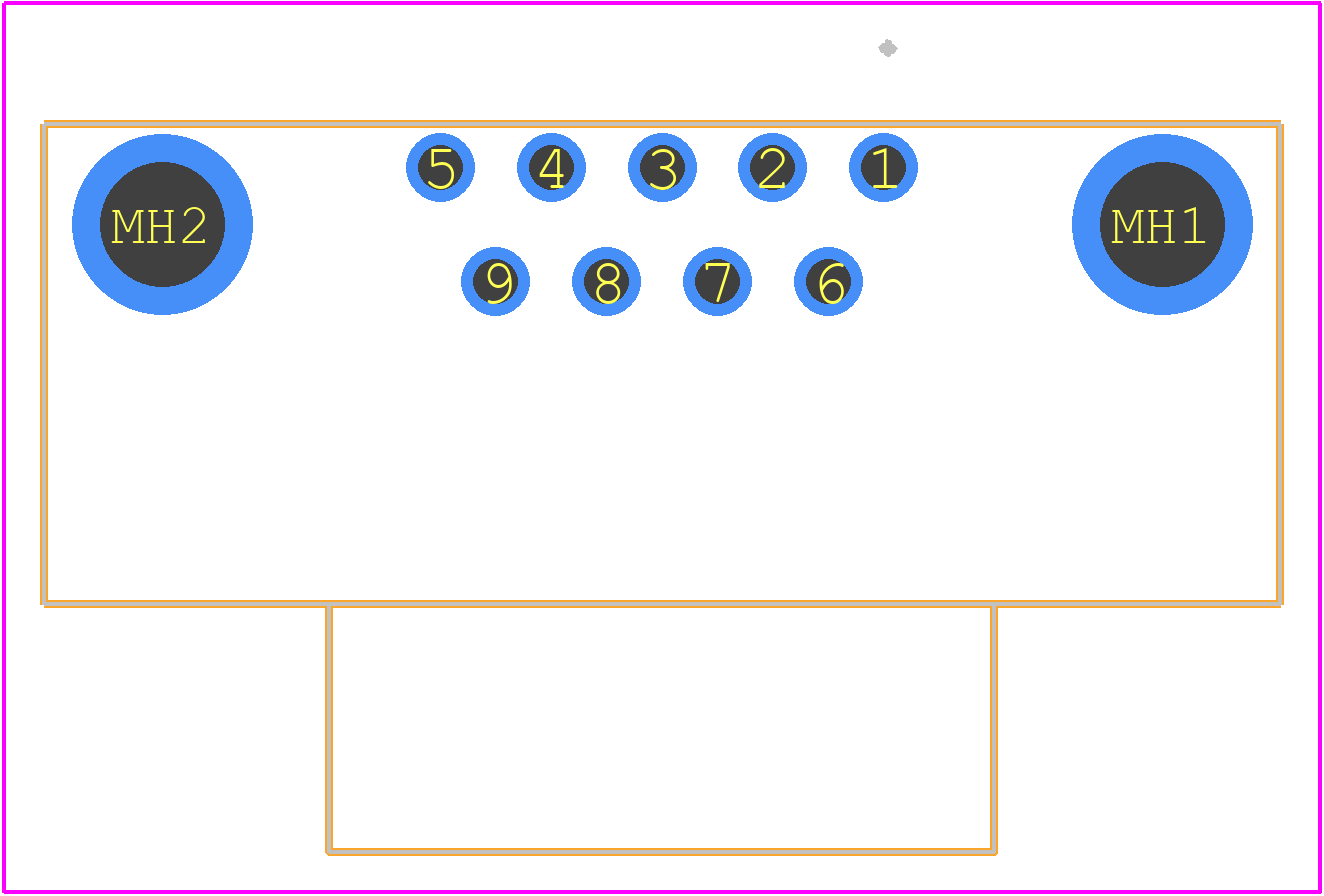

09681537611 - HARTING PCB footprint - Other - Other - 09681537611-2
click to zoom
3D Models
09681537611 - HARTING - 3D model - Other - 09681537611-2
click to zoom

09681537611 Details

  • Manufacturer Part Number:

    09681537611

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09681537611 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09681537611 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09681537611 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09681537611 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • Yes, the 09681537611 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum operating temperature of the 09681537611 connector is 125°C, making it suitable for use in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09681537611 Overview

Use the download button to access the 09681537611 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09681, or try a keyword search, such as D Type Connectors
