09681637811 - HARTING

Description: D-Sub 9pin male angled, US Footprint, stamped, with board locks, M3, PL3

Download 09681637811 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09681637811 - HARTING - PCB symbol
click to zoom
PCB Footprints

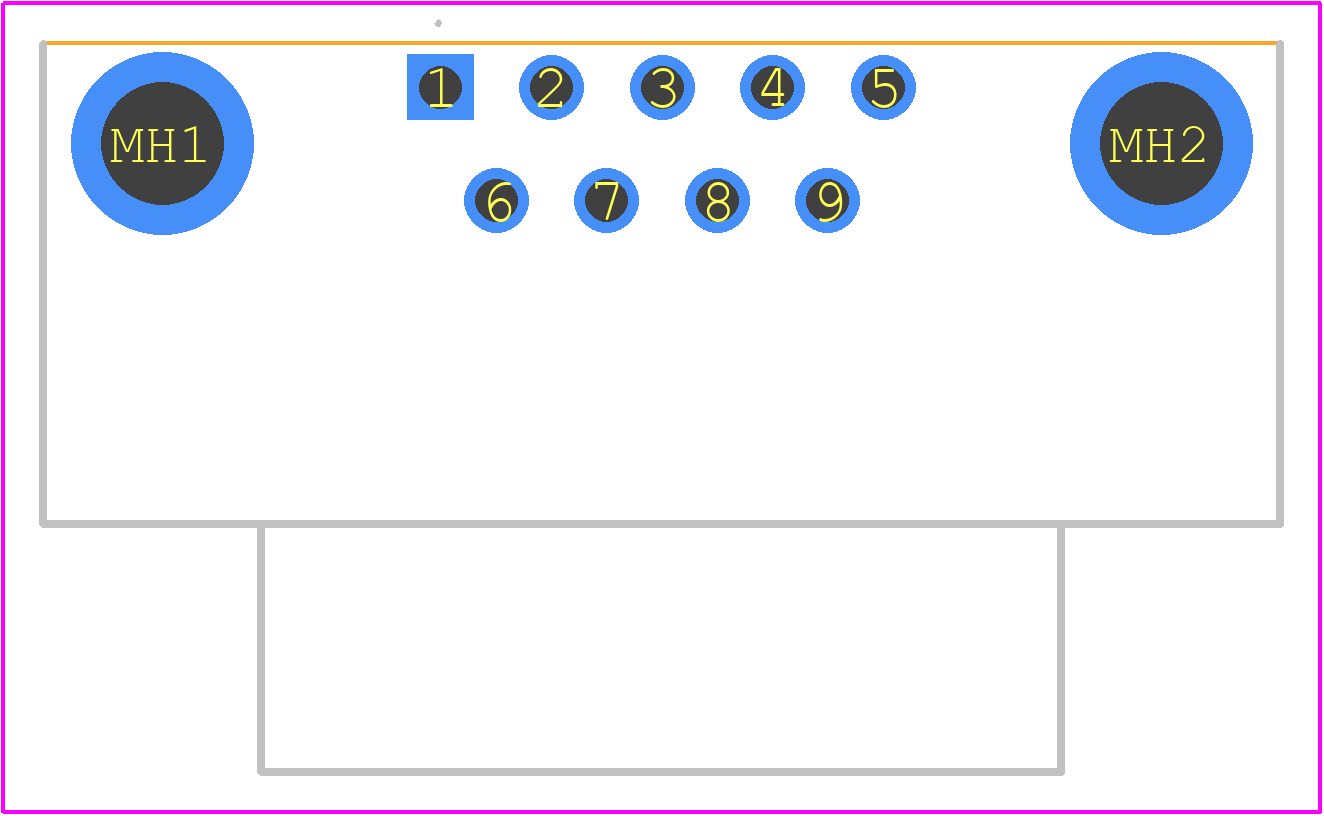

09681637811 - HARTING PCB footprint - Other - Other - 09681637811-2
click to zoom
3D Models
09681637811 - HARTING - 3D model - Other - 09681637811-2
click to zoom

09681637811 Details

  • Manufacturer Part Number:

    09681637811

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARDS: DIN 41652; IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09681637811 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09681637811 connector is -40°C to 125°C, as per the HARTING Technology Group's specifications.
  • Yes, the 09681637811 connector is designed to withstand high-vibration environments, making it suitable for applications in industries such as transportation, aerospace, and industrial automation.
  • The 09681637811 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 09681637811 connector is designed to be resistant to various chemicals and fuels, including gasoline, diesel, and hydraulic fluids, making it suitable for use in harsh environments.
  • The 09681637811 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
