09692009183 footprint, schematic symbol and 3D model by HARTING

Symbol

click to zoom

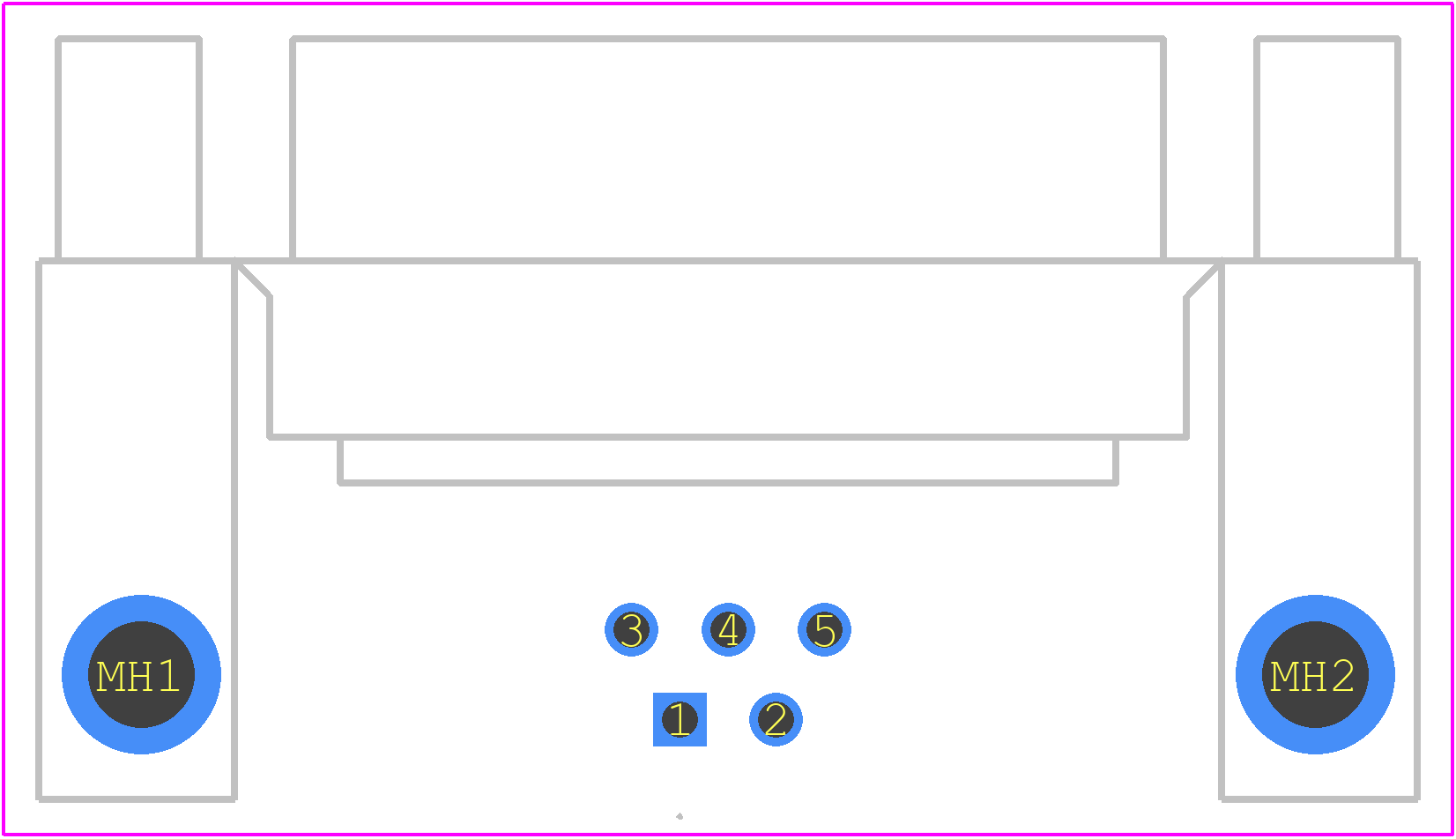

PCB Footprints

09692009183 - HARTING PCB footprint - Other - Other - 09692009183-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 09692009183
Part Number 09692009183
Manufacturer HARTING
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - 09692009183-2
Released Date Aug 21, 2023
Last Modified Date Aug 21, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

09692009183 Details

Manufacturer Part Number:
09692009183
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
HARTING Technology Group
YTEOL:
8
Body Breadth:
0.492 inch
Body Depth:
0.602 inch
Body Length:
1.539 inch
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Arrangement:
S3C2
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
GOLD (30)
Contact Gender:
FEMALE
Contact Style:
HYBRID
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Option 1:
#4-40
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE
Plating Thickness:
30u inch
Shell Finish:
TIN
Shell Size:
2/A
Terminal Length:
0.13 inch
Termination Type:
SOLDER
Total Number of Contacts:
5

09692009183 Frequently Asked Questions (FAQs)

The recommended torque for tightening the 09692009183 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09692009183 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
Yes, the 09692009183 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
Yes, the 09692009183 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
The maximum current rating for the 09692009183 connector is 40 A per contact, depending on the specific application and environmental conditions.
