09693009103 - HARTING

Description: D-Sub 5W5 male angled, 20Amps, PLS4, board locks, 4-40 screw locks

Download 09693009103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09693009103 - HARTING - PCB symbol
click to zoom
PCB Footprints

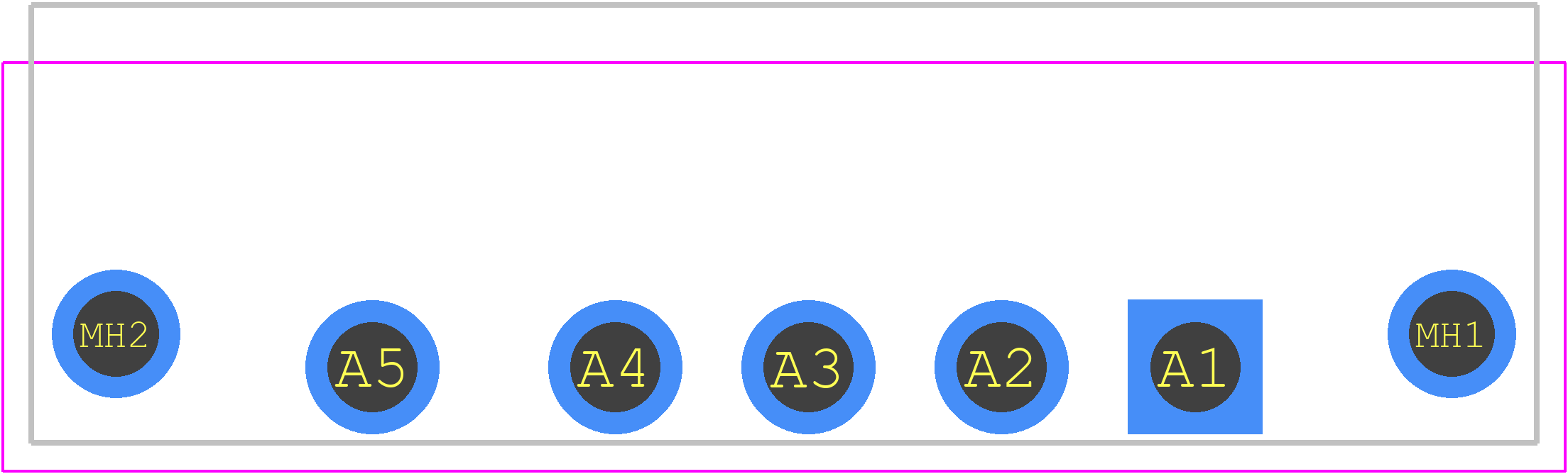

09693009103 - HARTING PCB footprint - Other - Other - 09693009103
click to zoom
3D Models
09693009103 - HARTING - 3D model - Other - 09693009103
click to zoom

09693009103 Details

  • Manufacturer Part Number:

    09693009103

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

09693009103 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09693009103 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09693009103 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09693009103 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the 09693009103 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09693009103 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
