09693909014 - HARTING

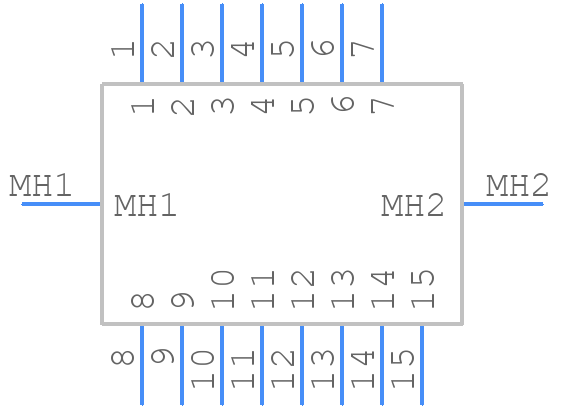

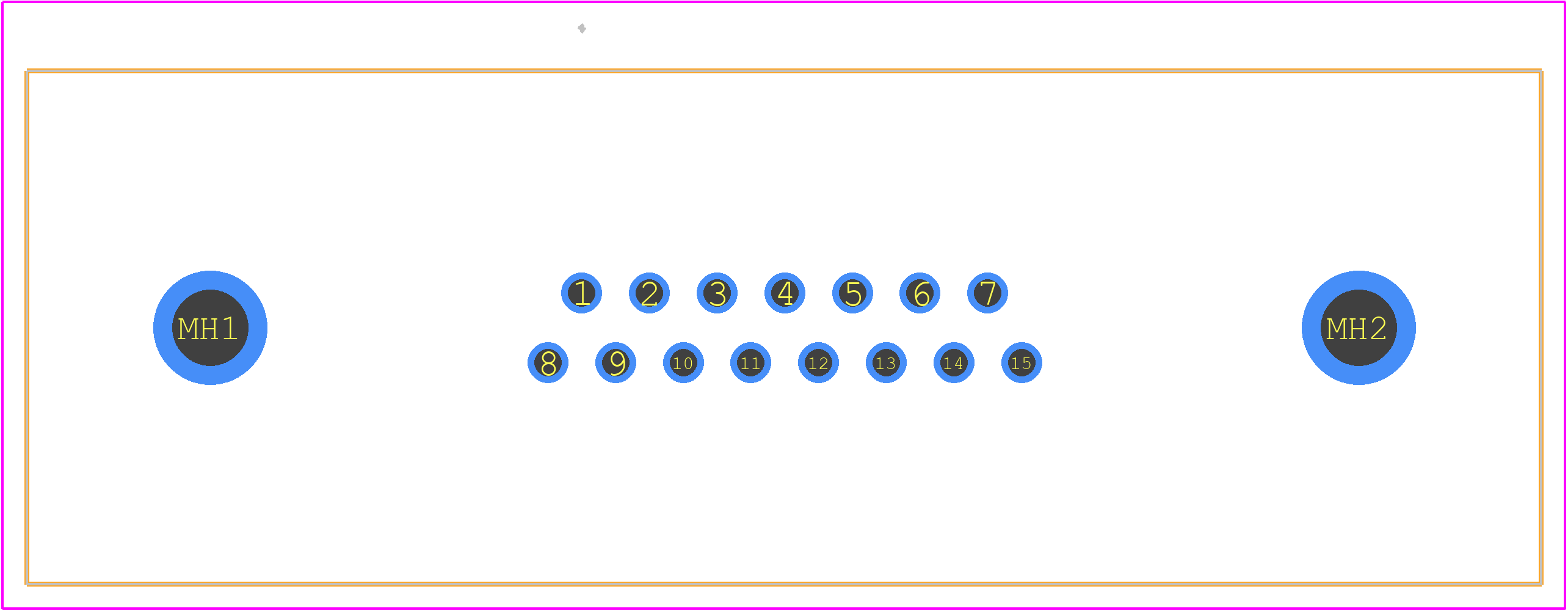

09693909014 Details

• Manufacturer Part Number:

  09693909014

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8.77

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.827 inch

• Body Depth:

  0.177 inch

• Body Length:

  2.441 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Termination:

  Gold (Au)

• Contact Gender:

  MALE

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• Empty Shell:

  NO

• Filter Feature:

  NO

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.109 inch

• Mixed Contacts:

  YES

• Mounting Option 1:

  4-40 UNC-2B

• Mounting Option 2:

  SCREW

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Option:

  WATERPROOF

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Shell Size:

  3/B

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  17
