097390-0409 - ITT CANNON

Description: Conn Micro D-Sub miniature PIN 100 POs 1.27mm Solder ST Thru-Hole 100 Terminal 1 Port MDM-100PBSPL56-A174

Download 097390-0409 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
097390-0409 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

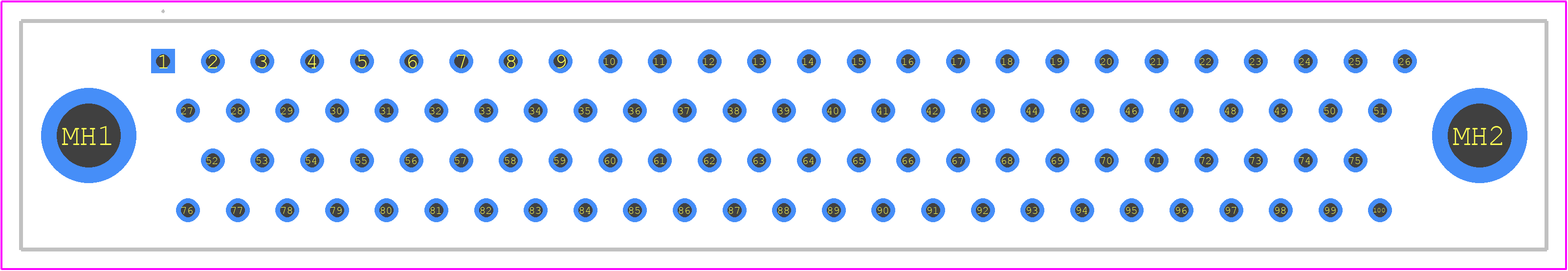

097390-0409 - ITT CANNON PCB footprint - Other - Other - 097390-0409-1
click to zoom
3D Models
097390-0409 - ITT CANNON - 3D model - Other - 097390-0409-1
click to zoom

097390-0409 Details

  • Manufacturer Part Number:

    097390-0409

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • Connector Type:

    D MICROMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Shell Finish:

    NICKEL

  • Shell Material:

    ALUMINUM ALLOY

  • Terminal Length:

    0.15 inch

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

097390-0409 Overview

Use the download button to access the 097390-0409 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09739, or try a keyword search, such as D Type Connectors
