09P30-02B12N - Grayhill

Description: Rotary Switches 09P30-02-1-12N-F Rotary Switch,Standard, PC mount, 30°, 2 deck, 1 pole/deck, 12 positions/pole, non-shorting, fixed stop, 09P30-02B12N

Download 09P30-02B12N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 09P30-02B12N model

Email notifications will be applied after download.

Send part feedback

Symbol

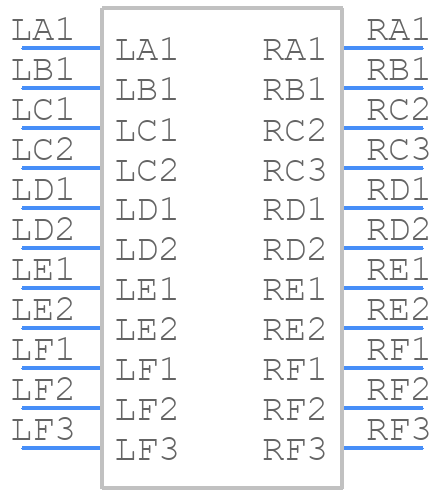

09P30-02B12N - Grayhill - PCB symbol

PCB Footprints

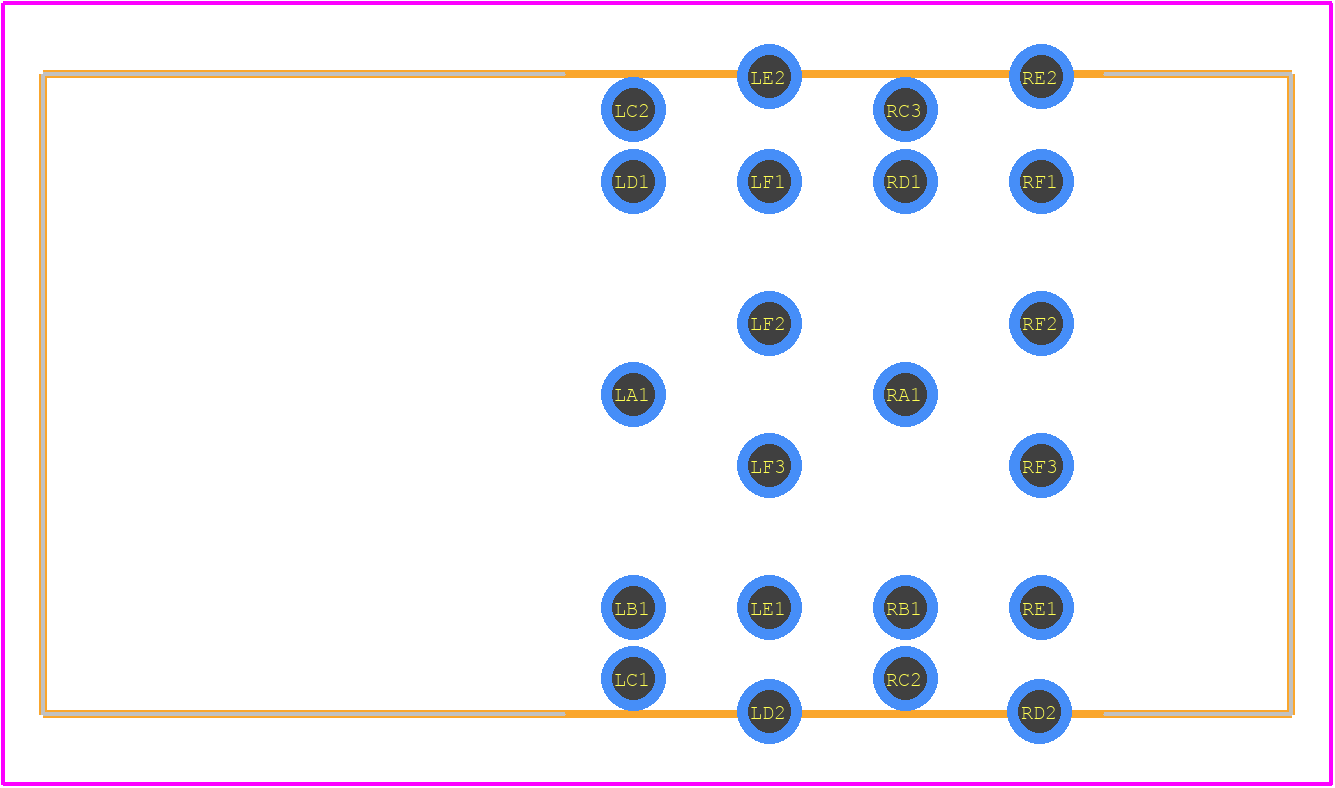

09P30-02B12N - Grayhill PCB footprint - Other - Other - 09P30-02B12N-6

3D Models

09P30-02B12N - Grayhill - 3D model - Other - 09P30-02B12N-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for 09P30-02B12N
Part Number 09P30-02B12N
Manufacturer Grayhill
Pin Count 22
Part Category Switch
Package Category Other
Footprint Name Other - 09P30-02B12N-6
Released Date Aug 23, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

09P30-02B12N Details

Manufacturer Part Number:
09P30-02B12N
Manufacturer:
Grayhill Inc

Trust Checks

Expert Contribution

System Verified

Community Approved

09P30-02B12N Overview

Use the download button to access the 09P30-02B12N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 09P30, or try a keyword search, such as Rotary Switches
