09VR1S25F1N103B1 - CTS

Description: Potentiometers 280Deg 10kOhm -10C +70C Flat Shaft

Download 09VR1S25F1N103B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

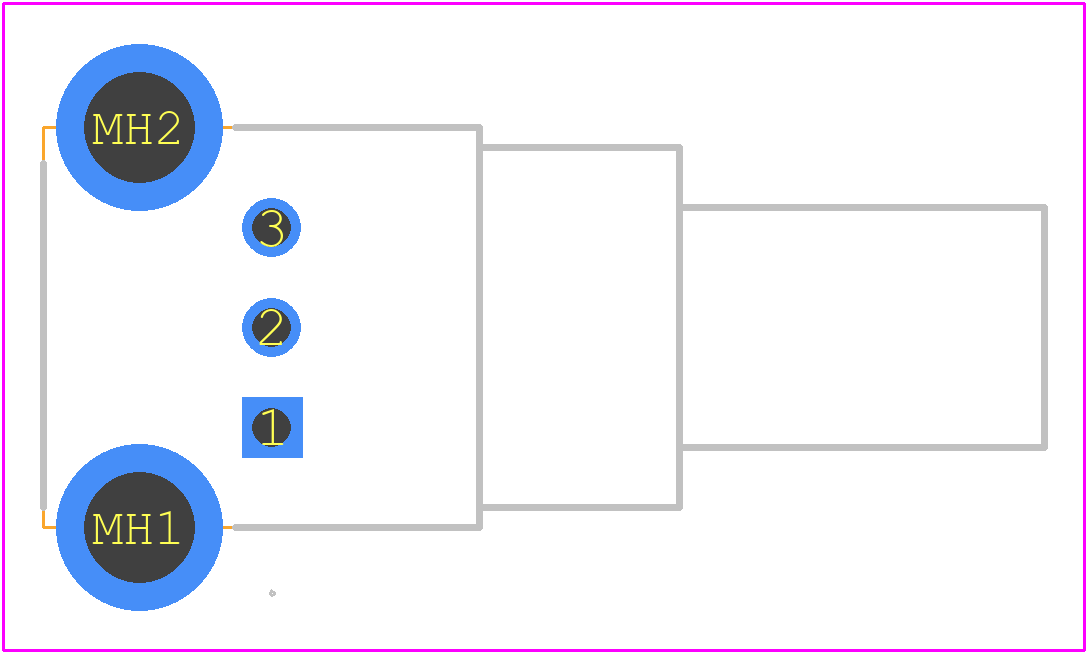

09VR1S25F1N103B1 - CTS PCB footprint - Other - Other - 09VR1S25F1N103B1-3
click to zoom

09VR1S25F1N103B1 Details

  • Manufacturer Part Number:

    09VR1S25F1N103B1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6

  • Actuator Orientation:

    HORIZONTAL

  • Actuator Type:

    SHAFT

  • Construction:

    Miniature

  • Ganging Number:

    1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    11.8 mm

  • Package Length:

    10 mm

  • Package Style:

    PCB Mount

  • Package Width:

    8.5 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    0.05 W

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    280 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON COMPOSITION

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    20 V
