1-101567-02 - Sensirion

Description: Pressure Sensor -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) Differential Male - 0.08" (2.00mm) Tube, Dual 16 b 16-SMD Module

Download 1-101567-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

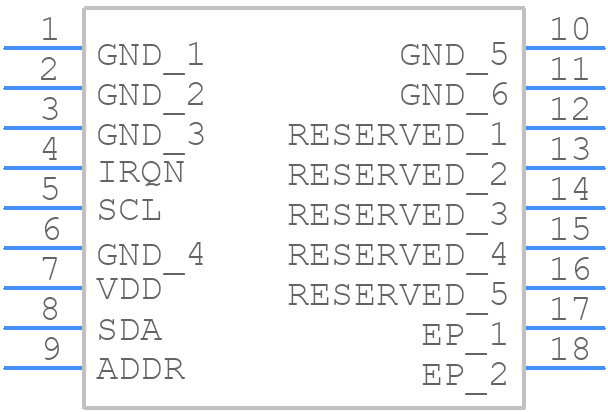

1-101567-02 - Sensirion - PCB symbol
click to zoom
PCB Footprints
1-101567-02 - Sensirion PCB footprint - Other - Other - 1-101567-02-2
click to zoom
3D Models
1-101567-02 - Sensirion - 3D model - Other - 1-101567-02-2
click to zoom

1-101567-02 Details

  • Manufacturer Part Number:

    1-101567-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    5.5 mm

  • Body Height:

    1.7 mm

  • Body Length or Diameter:

    8.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Package Equivalence Code:

    LCC16,.21X.33,40

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MASS AIR FLOW SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

1-101567-02 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 1-101567-02 sensor is -40°C to 125°C, with optimal performance between 0°C to 85°C.
  • The 1-101567-02 sensor is designed to operate in humid environments and can withstand condensation. However, it's essential to follow proper installation and sealing guidelines to prevent water ingress.
  • The response time of the 1-101567-02 sensor is typically around 1-2 seconds, depending on the specific application and environmental conditions.
  • The 1-101567-02 sensor is not designed for use in explosive or hazardous environments. It's essential to consult with Sensirion or a qualified expert to determine the suitability of the sensor for specific applications.
  • The 1-101567-02 sensor is designed to operate in clean air environments. Exposure to dust, contaminants, or pollutants may affect its performance and accuracy. Proper filtering or protection measures should be implemented to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-101567-02 Overview

Use the download button to access the 1-101567-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-101, or try a keyword search, such as Other Sensors/Transducers
