1-1123723-8 - TE Connectivity

Description: Rectangular Power Connectors, Header, Plug, Wire-to-Board, 8 Position, 3.96 mm [.156 in] Centerline, Printed Circuit Board, UL 94V-0, Economy Power

Download 1-1123723-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1123723-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

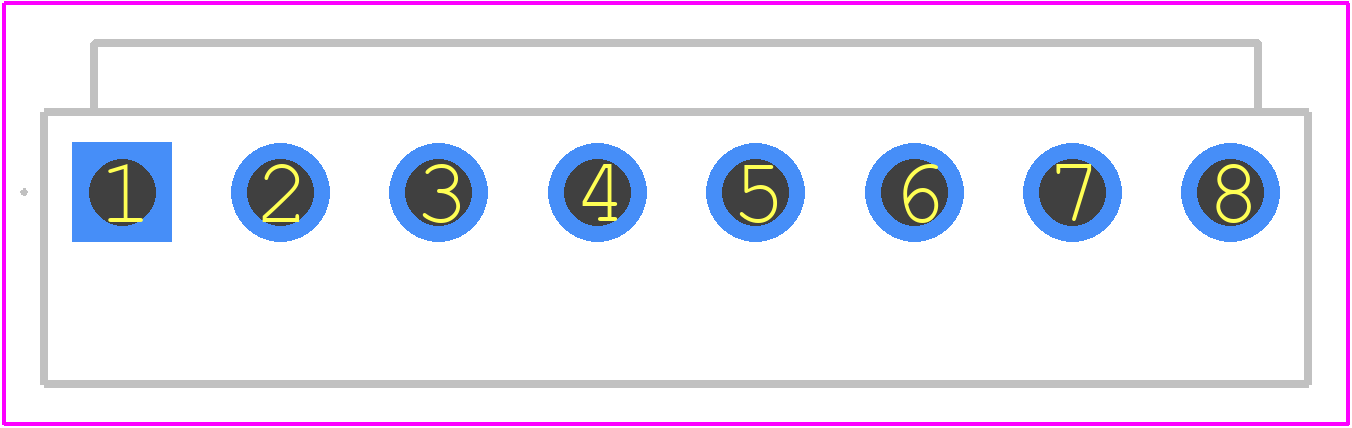

1-1123723-8 - TE Connectivity PCB footprint - Other - Other - 1-1123723-8-3
click to zoom
3D Models
1-1123723-8 - TE Connectivity - 3D model - Other - 1-1123723-8-3
click to zoom

1-1123723-8 Details

  • Manufacturer Part Number:

    1-1123723-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    0.421 inch

  • Body Depth:

    0.32 inch

  • Body Length:

    1.245 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S0P8

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    50 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.146 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1-1123723-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1123723-8 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance on torque values for your specific application.
  • While the 1-1123723-8 connector is designed to be robust, it's essential to evaluate its suitability for high-vibration environments on a case-by-case basis. TE Connectivity provides vibration testing data, but it's crucial to consult with their technical support to determine the connector's performance in your specific application.
  • The 1-1123723-8 connector is designed to operate in a temperature range of -40°C to 125°C. However, for harsh environments, it's essential to consult TE Connectivity's environmental testing data and application notes to ensure the connector meets your specific requirements.
  • The mating cycle life of the 1-1123723-8 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's technical support for specific guidance on mating cycle life for your application.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines for the 1-1123723-8 connector to ensure proper mating and to prevent damage to the connector or PCB. Consult TE Connectivity's application notes and technical support for specific guidance.
