1-1452721-1 - TE Connectivity

Description: TE Connectivity, 5mm Pitch 16 Way 2 Row Straight PCB Header

Download 1-1452721-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1452721-1 - TE Connectivity - PCB symbol
click to zoom

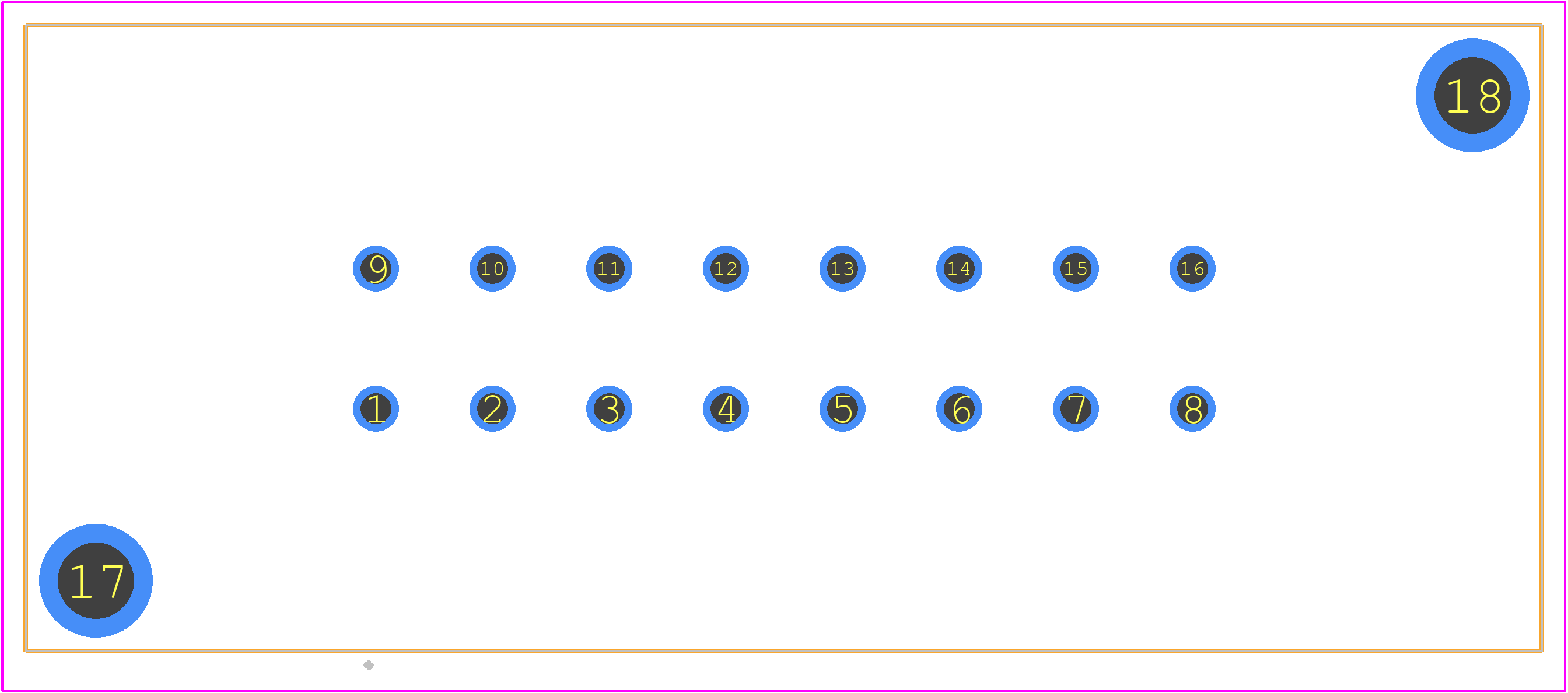

PCB Footprints
1-1452721-1 - TE Connectivity PCB footprint - Other - Other - 1-1452721-1
click to zoom
3D Models
1-1452721-1 - TE Connectivity - 3D model - Other - 1-1452721-1
click to zoom

1-1452721-1 Details

  • Manufacturer Part Number:

    1-1452721-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    1.055 inch

  • Body Depth:

    1.362 inch

  • Body Length:

    2.32 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000 Ω

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Pitch:

    0.197 inch

  • Mating Contact Row Spacing:

    0.236 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.9944 mm

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

1-1452721-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1452721-1 connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 1-1452721-1 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application and consult with TE Connectivity's technical support to ensure the connector meets the required vibration specifications.
  • The 1-1452721-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F). While it can withstand some exposure to chemicals, it's crucial to consult the TE Connectivity datasheet and application notes for specific guidance on environmental conditions and chemical resistance.
  • The mating cycle life of the 1-1452721-1 connector is typically around 500 to 1000 mating cycles, depending on the application and environmental conditions. However, it's recommended to consult TE Connectivity's technical support for specific guidance on mating cycle life and testing procedures.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout and design guidelines for the 1-1452721-1 connector to ensure proper mating, signal integrity, and reliability. Consult the TE Connectivity application notes and datasheet for specific guidance on PCB design and layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1452721-1 Overview

Use the download button to access the 1-1452721-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-145, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
