1-1586039-2 - TE Connectivity

Description: TE Connectivity VAL-U-LOK Series, 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder, Through Hole Termination, 9A

Download 1-1586039-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1586039-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

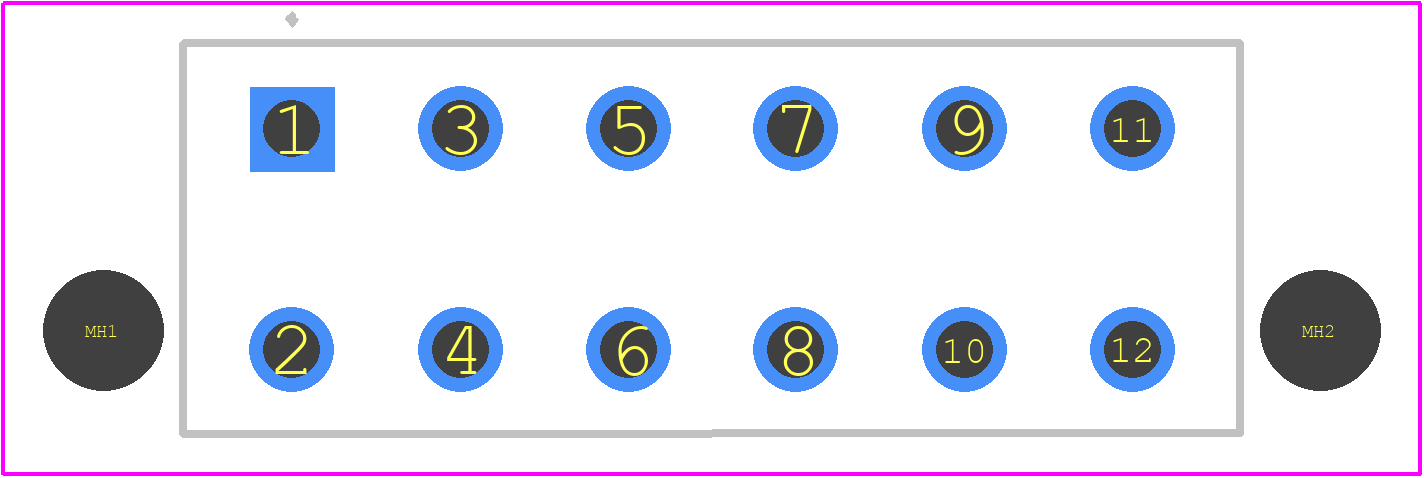

1-1586039-2 - TE Connectivity PCB footprint - Other - Other - 1-1586039-2-1
click to zoom
3D Models
1-1586039-2 - TE Connectivity - 3D model - Other - 1-1586039-2-1
click to zoom

1-1586039-2 Details

  • Manufacturer Part Number:

    1-1586039-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    VAL-U-LOK

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.384 inch

  • Body Depth:

    0.504 inch

  • Body Length:

    1.039 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    50 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    6.672 N

  • Insulation Diameter-Min:

    2.39 inch

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    9A

  • Mating Contact Pitch:

    0.165 inch

  • Mating Contact Row Spacing:

    0.165 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    GUIDE SLOT

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5118 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    80u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    9 A

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    4.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-2

1-1586039-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1586039-2 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 1-1586039-2 connector is designed to withstand some level of vibration, it's crucial to evaluate the specific vibration requirements of your application. TE Connectivity provides vibration testing data and guidelines in their application notes. Consult these resources or contact their technical support to determine the connector's suitability for your high-vibration environment.
  • The 1-1586039-2 connector is designed to operate within a specific temperature range (-40°C to 125°C) and humidity level. For harsh environments, consider using specialized connectors or coatings designed for extreme conditions. Consult TE Connectivity's environmental testing data and application notes to determine the connector's suitability for your specific environment.
  • The mating cycle life of the 1-1586039-2 connector is typically around 500-1000 cycles, depending on the application and environmental conditions. However, this value may vary depending on the specific use case. Consult TE Connectivity's application notes or contact their technical support for more information on mating cycle life.
  • Yes, there are specific PCB layout and design considerations for the 1-1586039-2 connector. TE Connectivity provides guidelines for PCB layout, footprint, and design recommendations in their application notes. It's essential to follow these guidelines to ensure proper connector performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1586039-2 Overview

Use the download button to access the 1-1586039-2 schematic symbol, PCB footprint, and 3D model.
