1-1740198-2 - TE Connectivity

Description: TE Connectivity 25 Way Right Angle SMT PCB D-sub Connector Socket, 2.77mm Pitch

Download 1-1740198-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

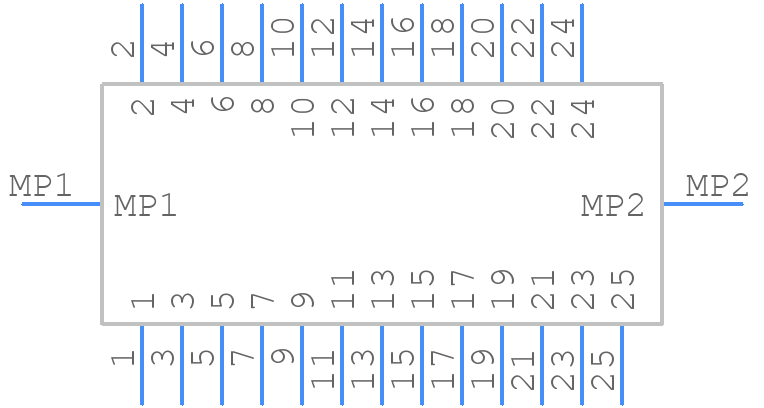

Symbol
1-1740198-2 - TE Connectivity - PCB symbol
click to zoom

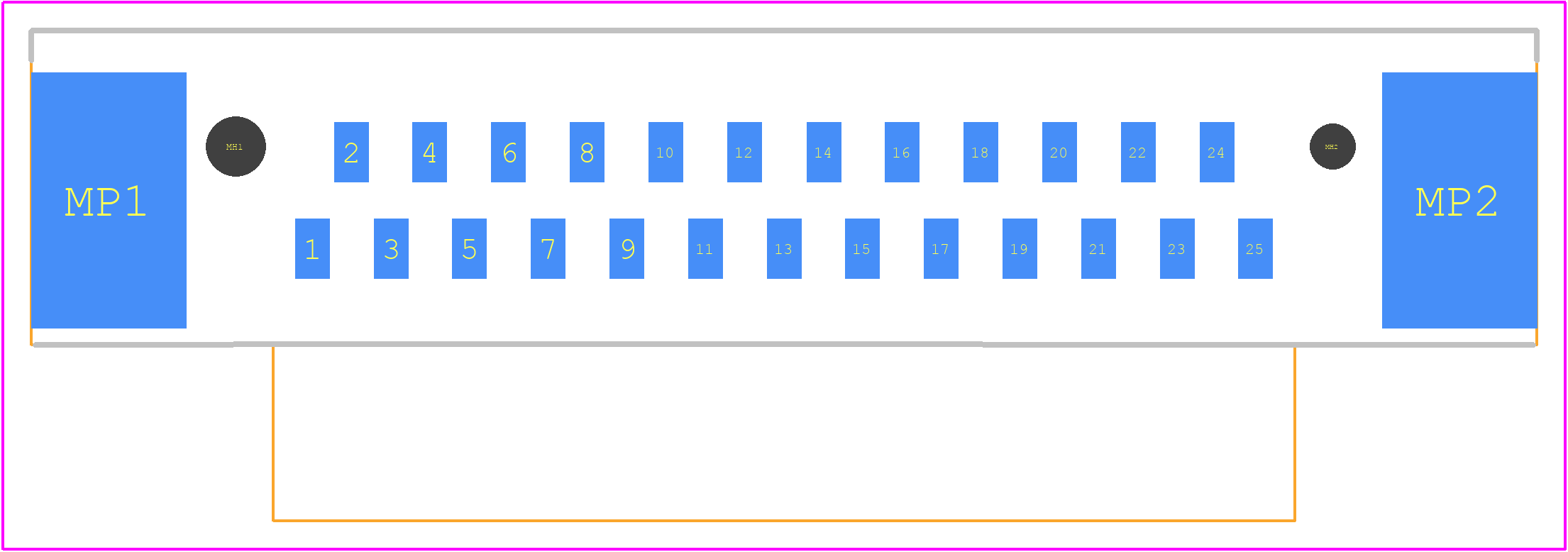

PCB Footprints
1-1740198-2 - TE Connectivity PCB footprint - Other - Other - 1-1740198-2-3
click to zoom
3D Models
1-1740198-2 - TE Connectivity - 3D model - Other - 1-1740198-2-3
click to zoom

1-1740198-2 Details

  • Manufacturer Part Number:

    1-1740198-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED PCT

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    4.5A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40 UNC

  • Mounting Option 2:

    THREADED INSERT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    4.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

1-1740198-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1740198-2 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the 1-1740198-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance, making it suitable for applications with high vibration levels.
  • The 1-1740198-2 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific environmental requirements of your application.
  • The 1-1740198-2 connector is rated for a minimum of 500 mating cycles. However, this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's performance in your specific use case.
  • The 1-1740198-2 connector is designed to be compatible with other TE Connectivity products and some third-party connectors. However, it's essential to consult TE Connectivity's documentation and perform testing to ensure compatibility and proper mating with other connectors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1740198-2 Overview

Use the download button to access the 1-1740198-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-174, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
